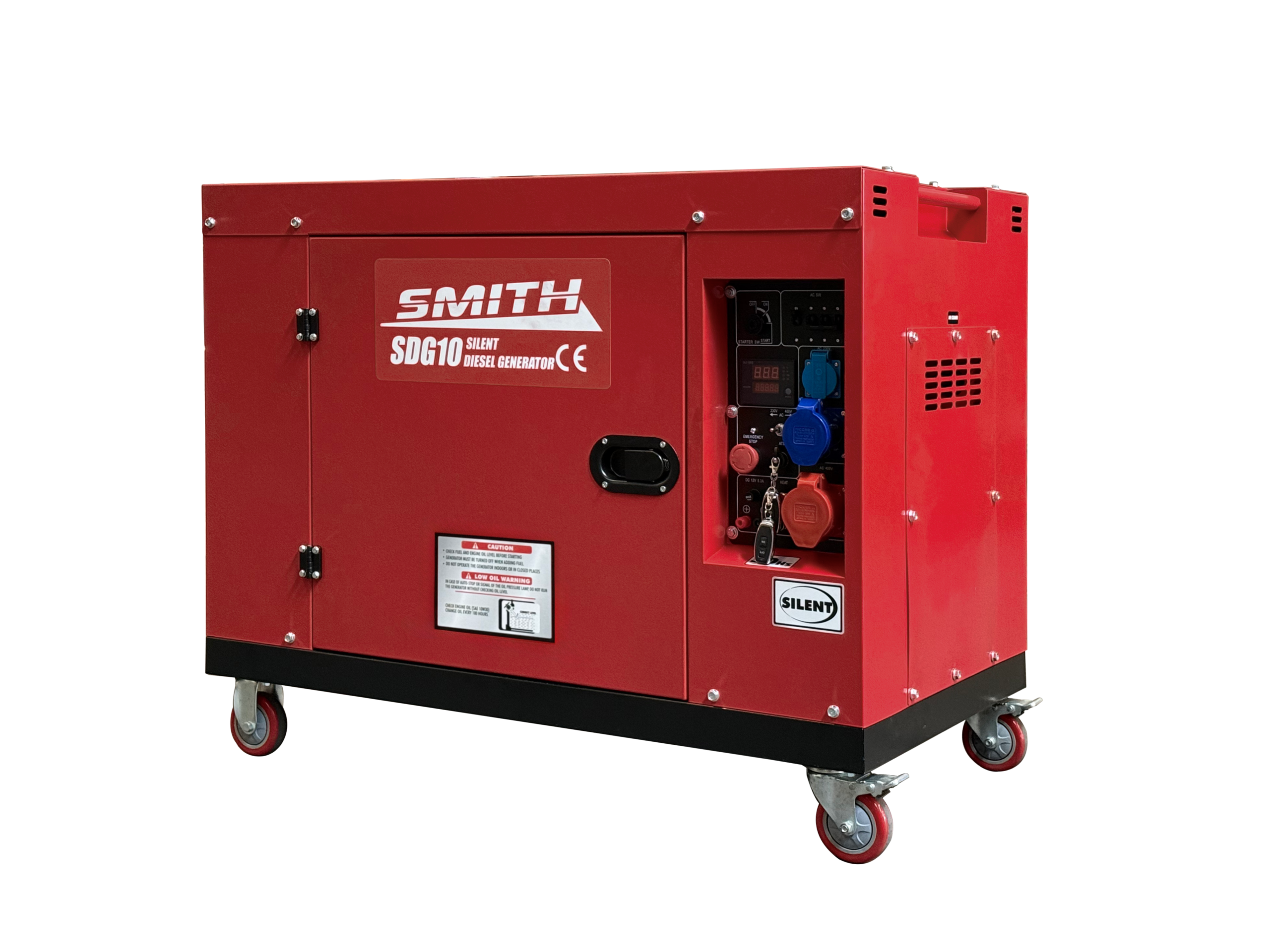

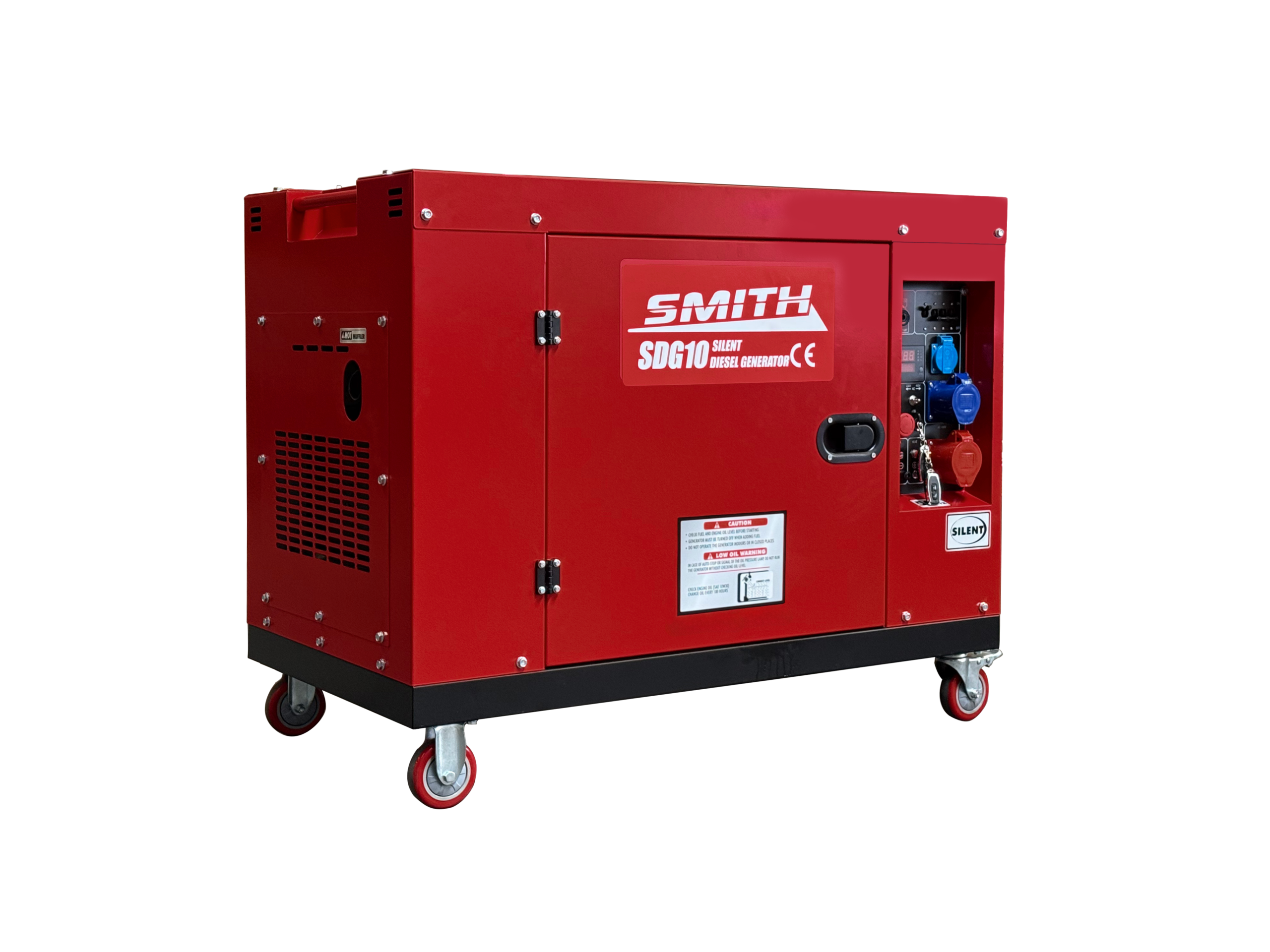

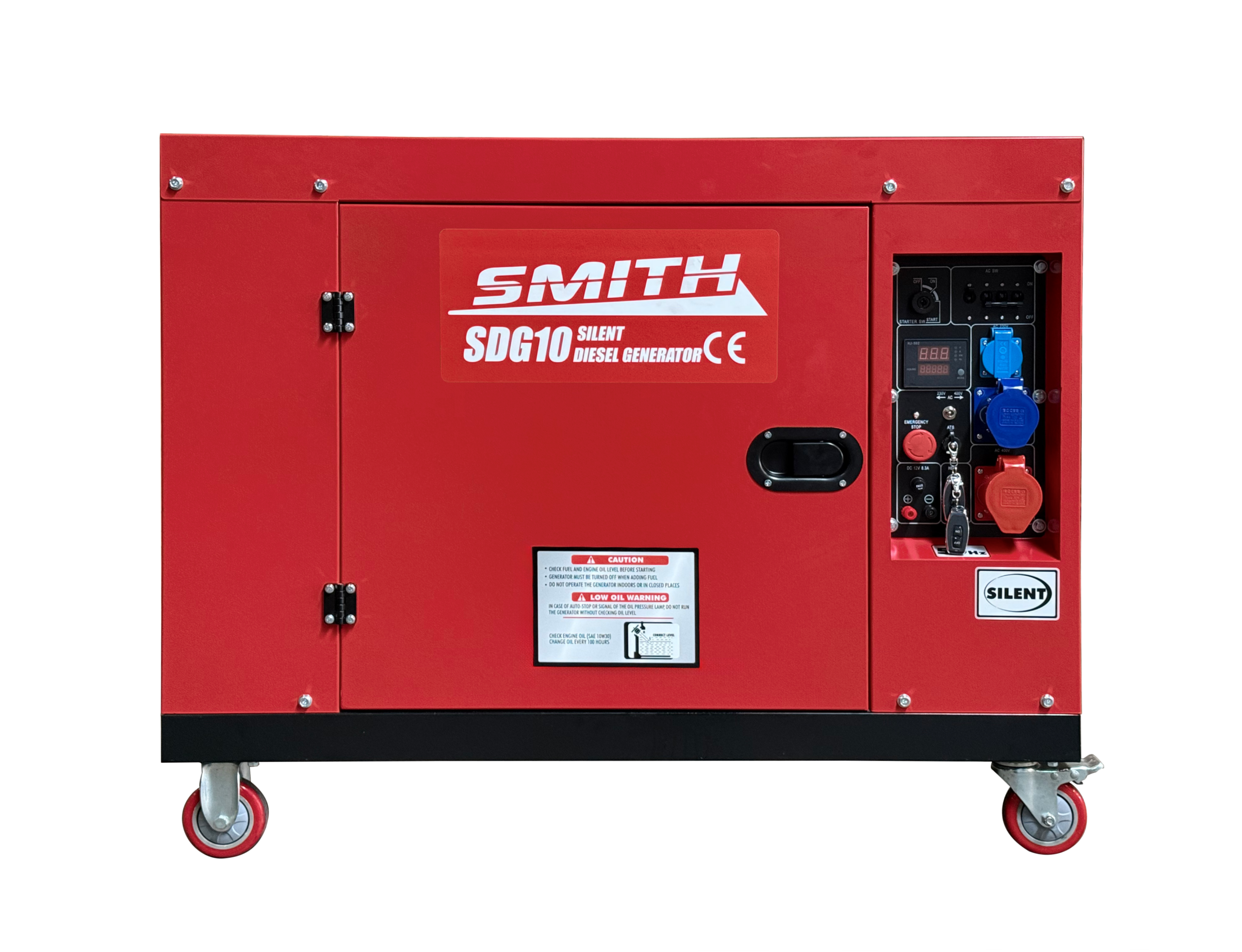

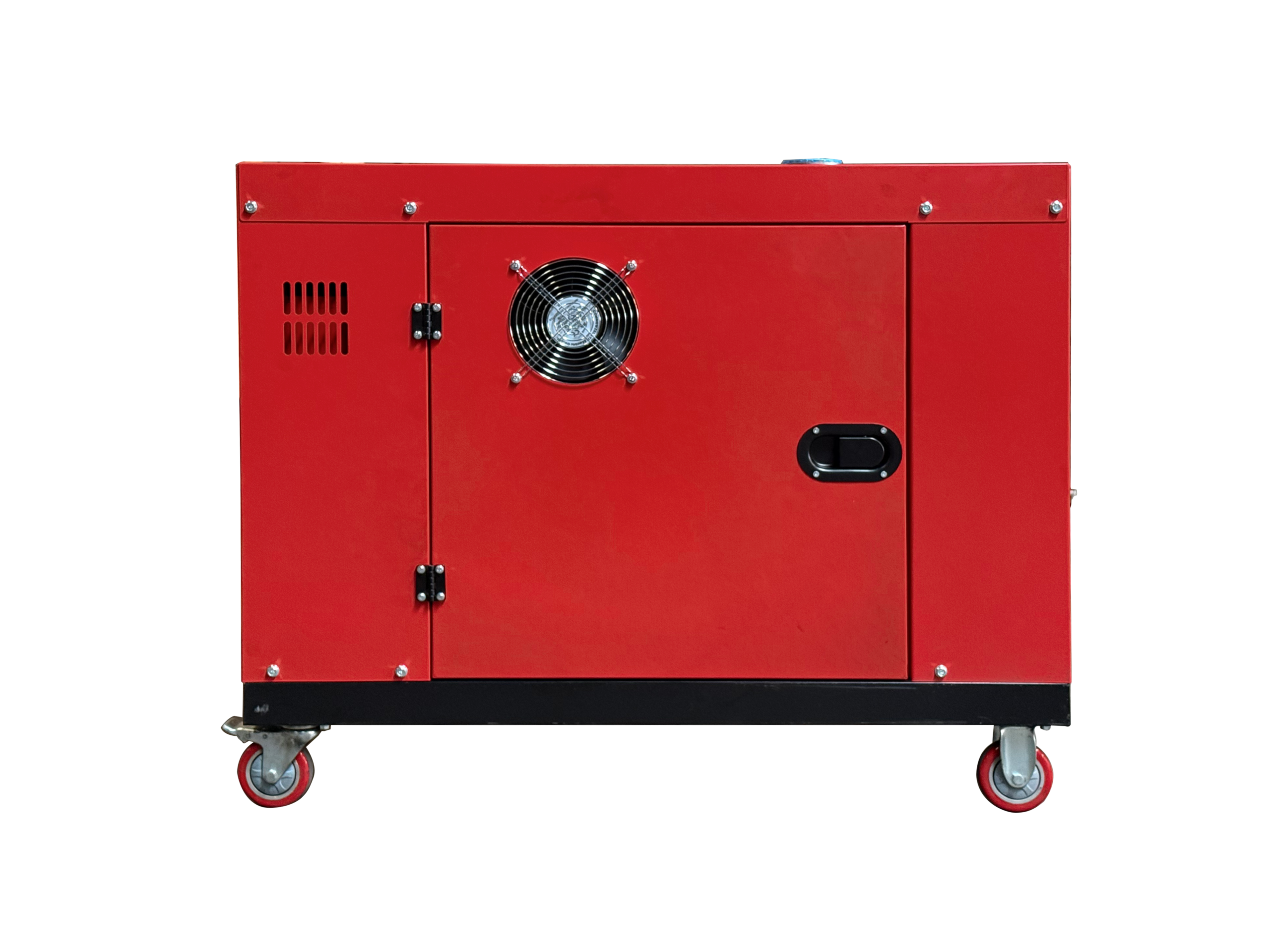

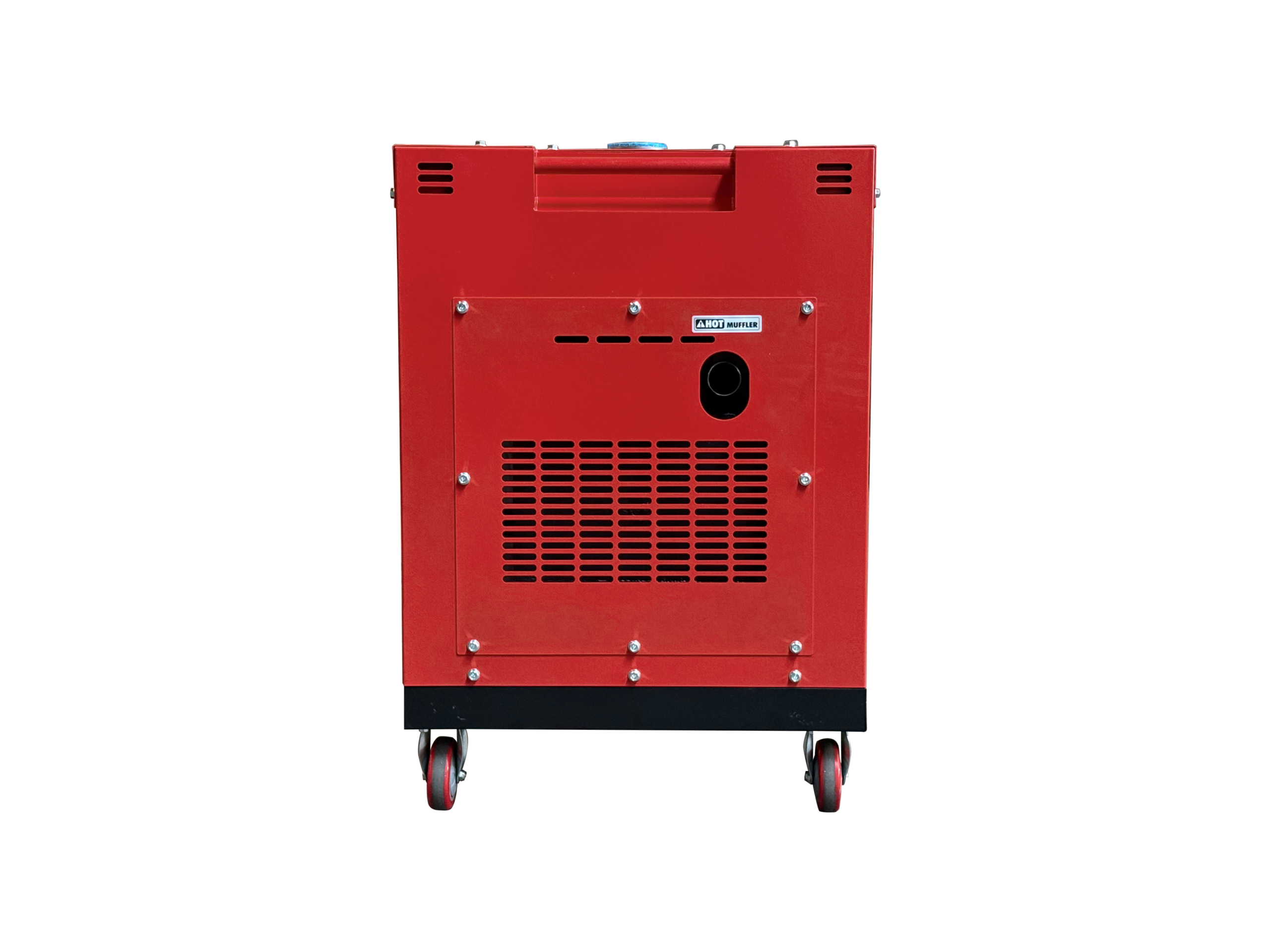

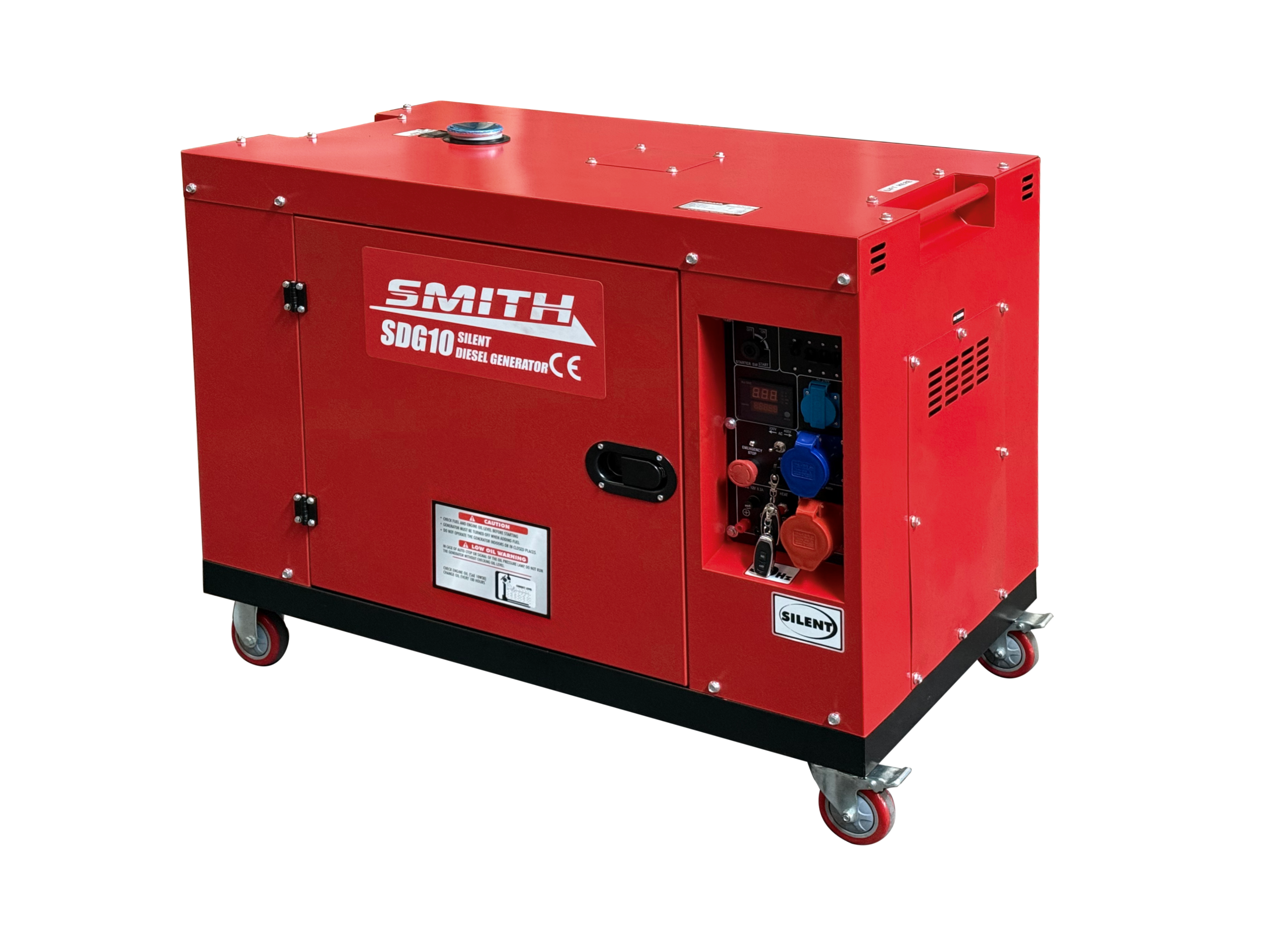

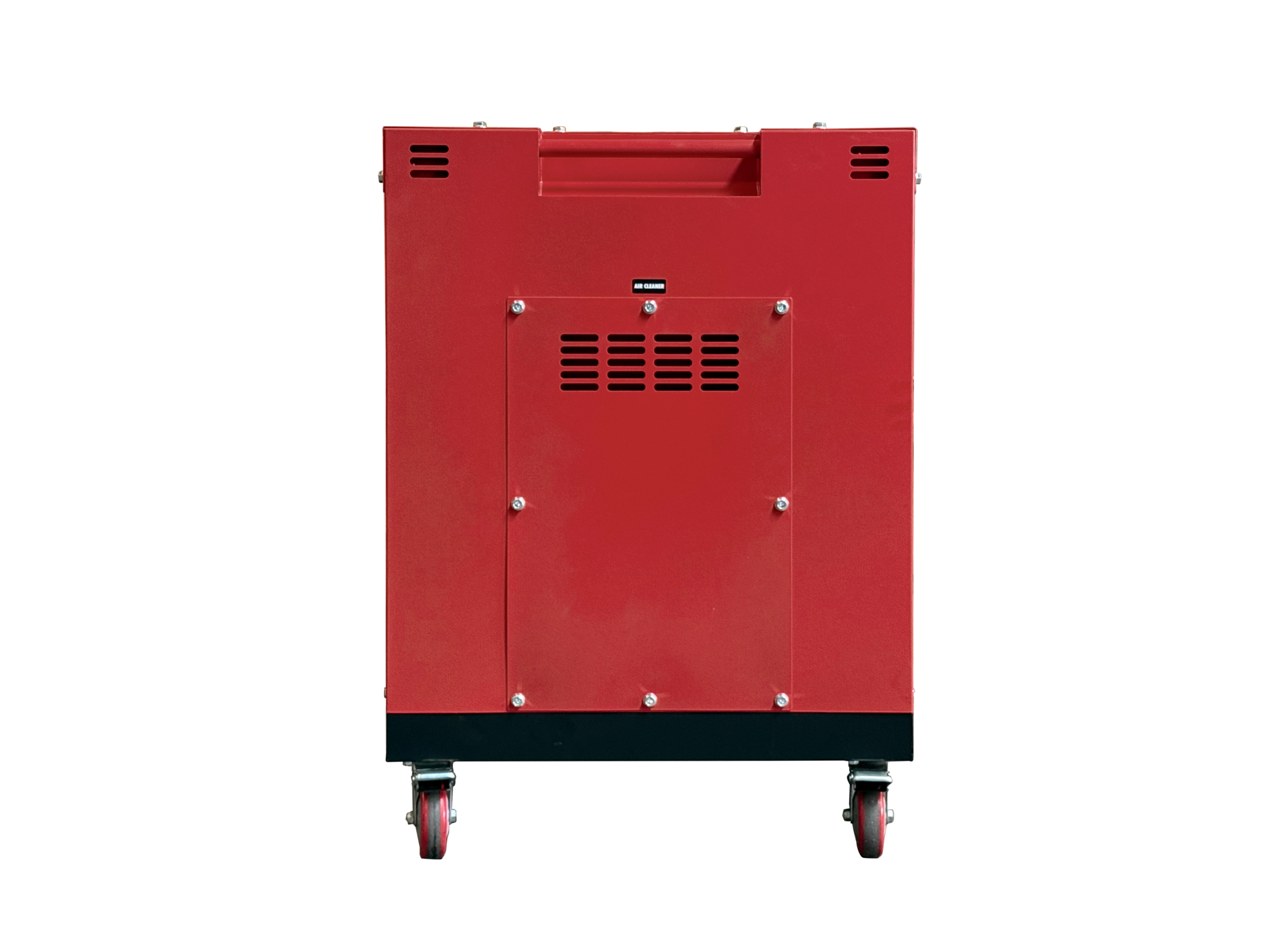

Diesel Generator 10kW SDG10

Diesel Generator 10kW SDG10

The Diesel Generator 10kW SDG10 is engineered to meet the rigorous power demands of various industrial and commercial applications. Known for its robustness, reliability, and efficiency, this generator offers a dependable solution where electricity is limited or unreliable. Whether you are operating in construction, field operations, or need a reliable emergency backup, this generator is designed to provide a steady power supply, even in the toughest conditions.

At a glance: 9.5 kW rated and 10 kW maximum power, three-phase 230 V / 400 V with 1 x 230 V (16 A), 1 x 230 V (32 A) and 1 x 400 V (32 A) sockets, electric start with remote control, an ATS connection for automatic start when the mains fails (with the ATS unit, sold separately), a single-cylinder air-cooled diesel engine with pre-heater and about 10 hours of operation on one 30-liter tank at rated load.

This powerful 10kW diesel generator is equipped with a 1-cylinder, 4-stroke, air-cooled diesel engine, offering a displacement of 734 cc and running at an engine speed of 3000 RPM. Operating efficiently on diesel, it is optimized for long-term operation, producing high energy output with minimal fuel consumption. The large 30-liter fuel tank allows for extended use, complemented by an efficient fuel consumption rate of ≤270 g/kWh, which minimizes refueling frequency. The generator supports both 230V and 400V outputs, with 1 x 230 V (16 A), 1 x 230 V (32 A), and 1 x 400 V (32 A) European sockets, making it versatile for various power needs. The electric start system and a remote control (standard) provide flexibility and ease of use across diverse environments.

Additional features include a self-excited, brushed synchronous alternator with Automatic Voltage Regulator (AVR), ensuring stable voltage output and protecting connected devices from fluctuations. Operating at a low noise level of 72 dB(A) at 7 meters, the SDG10 is quieter than many other generators of its size, ideal for settings where noise control is essential. The generator’s dimensions are 1115 mm (L) x 650 mm (W) x 930 mm (H), and it weighs 228 kg, offering both portability and stability for challenging locations.

In-Depth Technical Specifications of Diesel Generator 10kW

Crafted with an emphasis on durability and performance, the SDG10 model is compact yet powerful. Measuring 1115 mm in length, 650 mm in width, and 930 mm in height, this generator is both portable and stable, weighing in at 228 kg. Designed to meet diverse application needs, it operates at a frequency of 50 Hz with a rated voltage of 230 V / 400 V and 3-phase power, making it compatible with various equipment and tools.

The advanced engine model, 1103F, features a 1-cylinder, 4-stroke air-cooled design with direct fuel injection, ensuring reliable performance under varying loads. The generator’s self-excited, brushed synchronous alternator comes equipped with an Automatic Voltage Regulator (AVR) to stabilize the voltage output, protecting connected devices from voltage fluctuations. Operating at a noise level of 72 dB(A) at 7 meters, it is quieter than many generators in its class, making it suitable for settings where noise control is a priority.

Specifications of Diesel Generator 10kW SDG10

Advantages of Diesel Generator 10kW

The Diesel Generator SDG10 integrates a series of advanced components designed to enhance its performance and durability:

• Starter Motor: Facilitates reliable engine startup with an electric start system, making it ideal for on-demand power.
• Flywheel Generator: Ensures smooth power generation, stabilizing the engine for consistent output.
• Voltage Regulator: Stabilizes voltage to protect connected devices, ensuring reliable operation and reducing wear on sensitive equipment.
• Battery and Cables: Supports electric starting and provides dependable connections, powering the onboard electronics and ensuring quick starts.
• Oil Level Sensor: Prevents potential engine damage by alerting the user to low oil levels.
• Capacitor and Voltage Regulator Bracket: These components improve power efficiency and secure the voltage regulator, optimizing generator output.

• High Fuel Efficiency: With a fuel consumption rate of ≤270 g/kWh, this generator maximizes operational time and minimizes fuel costs.
• Reliable Power Output: Its rated output of 9.5 kW and maximum output of 10 kW deliver stable, dependable power for demanding applications.
• Durable and Low Maintenance: Built with a self-excited, brushed synchronous alternator with Automatic Voltage Regulator (AVR), this generator offers stable voltage output, reducing wear on connected devices and extending the generator’s lifespan.
• Low Noise Operation: Operating at a noise level of 72 dB(A) at 7 meters, it’s quieter than many other generators, ideal for environments where noise is a concern.
• Compact and Portable: With dimensions of 1115 mm (L) x 650 mm (W) x 930 mm (H) and a weight of 228 kg, it combines portability with the stability needed for tough locations.
• Versatile Power Options: Equipped with European sockets for 230V and 400V outputs, it supports multiple devices and tools, making it suitable for diverse applications.

Key features of Diesel Generator 10kW

Applications and Performance

Designed for versatile use, the Diesel Generator 10kW SDG10 is well-suited to a wide range of applications, from powering construction tools on-site to providing emergency backup power. Its high capacity and durable construction make it a reliable choice for field operations, where power stability is crucial.

Quality Standards and Safety Features

The SDG10 is protected by several safety features. Its automatic voltage regulator protects against electrical surges, while a low oil pressure sensor safeguards the engine from potential damage. Additional safety features, such as an emergency stop and ATS hole, make this generator a secure and user-friendly choice for industrial and commercial use. The Diesel Generator 10kW SDG10 is designed to meet the rigorous power needs of industrial and commercial applications. Known for reliability, fuel efficiency, and long-term durability, this generator offers a powerful and dependable solution where electricity is limited or inconsistent. Perfect for sectors like construction, remote field operations, and emergency backup, this generator ensures a steady power supply even in the most challenging environments.

High-quality Diesel Generator 10kW

Diesel Generator 10kW is a high-quality power solution, designed with premium materials and advanced engineering to deliver reliable performance in demanding environments. Here’s what sets it apart as a top-tier generator:

• Robust Engine Design: Equipped with a 1-cylinder, 4-stroke, air-cooled diesel engine with a displacement of 734 cc, this generator is built for durability and efficiency. Its engine structure ensures consistent power output with minimal wear, even under heavy loads, which prolongs the lifespan of the generator.
• Efficient Fuel System: Diesel generator SDG10 incorporates a direct injection fuel system that ensures efficient fuel atomization and optimized combustion. This design results in a low fuel consumption rate of ≤270 g/kWh, allowing for longer run times and cost savings over time. The 30-liter fuel tank also supports extended operation without the need for frequent refueling.
• Advanced Voltage Regulation: Featuring a self-excited, brushed synchronous alternator with an Automatic Voltage Regulator (AVR), the generator provides stable voltage output, protecting connected equipment from voltage fluctuations. This level of regulation is especially important in settings with sensitive electronics or where stable power is critical.
• Low Noise Operation: The Diesel Generator 10kW operates at a quiet 72 dB(A) at 7 meters, thanks to high-quality sound-dampening materials and a well-engineered design that minimizes noise and vibration. This makes it an ideal choice for environments that require quiet operation without compromising on power.
• Heavy-Duty Build: Constructed with durable components and high-strength materials, this generator is designed to withstand harsh conditions. Its dimensions of 1115 mm x 650 mm x 930 mm and weight of 228 kg give it stability while remaining portable enough for field operations, making it a versatile power source.
• User-Friendly Features: SDG10 model comes with an electric start system and a remote control (standard), providing flexibility and convenience for users. The digital display offers real-time data, allowing for easy monitoring of performance, which enhances usability and safety.

Each of these features contributes to the high quality of the Diesel Generator 10kW, making it a dependable and efficient power solution for industrial, commercial, and emergency use. With its focus on durability, efficiency, and ease of use, diesel generator 10kW SDG10 stands out as a premium choice for those seeking a generator they can rely on for years to come.

Testimonials for Diesel Generator 10kW

Alexander S., Construction Site Manager, Germany
“The Diesel Generator 10kW SDG10 has been an absolute game-changer for our construction projects. Its robust design and stable power output allow us to run multiple heavy tools without any interruptions. The fuel efficiency is impressive, saving us time and money on refueling. Highly recommended for anyone needing reliable power in demanding environments!”

Maria L., Emergency Operations Coordinator, Spain
“During a critical power outage at our facility, the Diesel Generator 10kW SDG10 performed flawlessly. It kept our essential systems running seamlessly for over 10 hours without a hitch. The low noise level was a bonus in our crowded urban environment. This generator is a must-have for reliable emergency backup power!”

Olivier D., Agricultural Business Owner, France
“We use the Diesel Generator 10kW SDG10 for our field operations, and it has exceeded our expectations. Its portability and ease of use make it perfect for remote locations. The engine runs smoothly, and the digital display helps us monitor performance effortlessly. A great investment for anyone needing dependable and efficient power in agriculture!”

Why a 10kW Diesel Generator is a Smart Choice?

Investing in a 10kW diesel generator, like the SDG10, is an intelligent choice for anyone seeking a reliable, high-performance power solution. Here’s why:

• High Fuel Efficiency: Sielent diesel generator operates at a fuel consumption rate of ≤270 g/kWh, thanks to its direct injection system and efficient 1-cylinder, 4-stroke engine. This means it uses less fuel, extends operational time on a single tank, and reduces the need for frequent refueling, making it an economical option for long-term use.
• Reliable Power Output: With a rated output of 9.5 kW and a maximum of 10 kW, this generator provides a stable power supply, even under high-demand conditions. The robust engine design ensures consistent performance, making it ideal for critical applications such as backup power and remote operations.
• Durability and Longevity: Constructed with high-quality components, including a sturdy flywheel generator and a reliable voltage regulator, SDG10 is built to withstand frequent use and tough conditions, reducing repair and replacement costs over time.
• User-Friendly Operation: The electric start system, intuitive control panel, and remote control make it easy to operate, even for those with minimal technical experience.

Where to use Diesel Generator 10kW?

The versatility of the Diesel Generator 10kW makes it suitable for a wide range of applications:

• Construction Sites: Provides dependable power for tools and equipment, especially in remote locations where grid access is unavailable.
• Pipeline Construction: Ideal for power-intensive tasks like welding and cutting, ensuring safety and operational efficiency in isolated areas.
• Emergency Backup Power: Ensures continuous power supply during outages, keeping essential systems like refrigeration and communication equipment operational.
• Field Operations: Perfect for agriculture, research, and other field activities requiring reliable power in areas without access to the electrical grid.
• Commercial Applications: Supports businesses that need backup power to maintain productivity during unexpected power failures.

How to Use the Diesel Generator 10kW?

Operating the Diesel Generator 10kW SDG10 is straightforward, thanks to its user-centric design and clear controls. Here are some basic steps:

1. Setup: Place the generator on a stable, flat surface in a well-ventilated area.
2. Starting: Engage the electric start or remote control for easy activation.
3. Connecting Equipment: Use the 1 x 230 V (16 A), 1 x 230 V (32 A), and 1 x 400 V (32 A) European sockets to connect your tools or appliances.
4. Monitoring: Keep an eye on the digital display for real-time information on performance.
5. Shutting Down: When finished, turn off connected devices, let the generator cool, and then power down the engine.

How to Ensure Safe Operation Using the Diesel Generator 10kW?

Safety is paramount when using any diesel generator. SDG10 model includes several built-in safety features, but here are additional best practices to keep in mind:

• Ventilation: Always operate the generator in an open or well-ventilated space to prevent carbon monoxide buildup.
• Clear Area: Keep flammable materials away from the generator to reduce the risk of fire.
• Proper Grounding: Ground the generator effectively to avoid electrical shocks.
• Use Protective Gear: Wear gloves, goggles, and other protective equipment when handling fuel or conducting maintenance.
• Routine Maintenance: Regularly check oil levels, filters, and fuel lines to keep the generator running safely and efficiently.

Diesel Generator 10kW Price

The Diesel Generator 10kW SDG10 offers exceptional value for its performance, durability, and advanced features. While diesel generators vary in price depending on power capacity and additional functions, the SDG10 model is competitively priced. Its high fuel efficiency, minimal maintenance requirements, and long operational lifespan contribute to substantial cost savings over time, making it a smart investment for any industrial or commercial application.

Buy Diesel Generator 10kW

If you’re in the market for a dependable and powerful generator, the Diesel Generator 10kW SDG10 is an ideal choice. With its advanced features, robust design, and cost-effective pricing, it meets the demands of diverse applications, from industrial sites to commercial settings. For more information or to purchase the Diesel Generator 10kW, click on the “Get Offer” button or contact our team. Invest silent diesel generator and experience reliable, efficient power for your operations.
