Pallet Wrapping Machine SMARTWRAP X2 PRE-STRETCH with Scale | 2000 kg, up to 3000 mm wrapping height

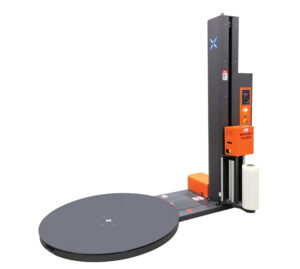

SMARTWRAP X2 PRE-STRETCH pallet wrapper with a scale

SMARTWRAP X2 PRE-STRETCH is a turntable pallet wrapper with a scale: the pallet is put on the turntable with a stacker or a pallet truck, the machine weighs the load and wraps it in stretch film in one cycle, and the operator does not walk around the pallet with a roll of film.

The machine is configured for your pallets: turntable 1500, 1650, 1800, 2000 or 2200 mm and wrapping height 2200, 2600 or 3000 mm. Every version carries up to 2000 kg and wraps up to 30 pallets an hour. The column is only 2000 mm high for a 2200 mm wrap, so the machine goes under a low ceiling.

The film is stretched before it goes on the load: powered pre-stretch of 250 % (up to 350 %) makes one metre of film cover two and a half metres of the pallet, so a roll lasts longer and the film holds the load under even tension.

The built-in scale weighs the load while it is wrapped, so a separate weighing station is not needed. The weight is shown on the screen at the end of the cycle, so it can be written onto the delivery note or the dispatch list without a second weighing.

Where the SMARTWRAP X2 PRE-STRETCH pallet wrapper is used

The SMARTWRAP X2 PRE-STRETCH pallet wrapper with scale is used in warehouses, logistics and distribution centres, and production lines that ship palletised goods. It is suited to operations that need to record the weight of each pallet for dispatch, freight calculation or inventory control.

Typical loads include cartons, sacks, drums, crates and mixed goods on pallets.

Technical specifications

What the pallet wrapper does for your dispatch

• Weighing and wrapping in one cycle. The scale is under the turntable, so the pallet is weighed where it is wrapped, no weighbridge, no second handling.
• Film that goes further. Powered pre-stretch of 250 % (up to 350 %) means fewer rolls per pallet and a wrap that holds.
• The weight stays on the screen. Read it at the end of the cycle and write it onto the delivery note.
• Made to your pallets. Five turntable diameters and three wrapping heights, the machine is ordered for the load you really have.
• Set once, repeated by anyone. Six programs on the touch screen and a one-button start, so every shift wraps the same way.
• It knows how high the load is. A SICK photoelectric sensor finds the top of the pallet, so the film is not wrapped into the air above it.

Operator tasks and integration into the packing process: SMARTWRAP X2 PRE-STRETCH

The machine is often placed at the end of a packing line or near the dispatch area, so pallets can be wrapped and weighed just before shipment. The low turntable height allows loading with a pallet truck, and optional ramps are available for sites without floor-level access.

Turntable, film carriage and controls

• Turntable 1500, 1650, 1800, 2000 or 2200 mm
• Wrapping height 2200, 2600 or 3000 mm
• Maximum load 2000 kg, turntable 81 mm high
• Built-in scale
• Powered pre-stretch 250 % (max 350 %)
• Stretch film 500 mm wide, 14 micron, on a 76 mm core
• Turntable 0–12 rpm and film carriage 0–5.9 m/min, both adjustable
• Up to 30 pallets an hour
• Touch screen, 6 wrapping programs, one-button start
• SICK (Germany) photoelectric height sensor
• Column of aluminium profile and steel with double chain lifting
• Soft start and stop, emergency stop, anti-pressure and anti-fall device under the carriage
• Three-colour LED light and a return to the starting position after every cycle
• 220 V, 50/60 Hz, single phase, 10 A, 1.5 kW; noise 75 dB

How to use the SMARTWRAP X2 PRE-STRETCH pallet wrapper

1. Put the roll of stretch film, 500 mm wide, on the film carriage and thread the film between the rollers.
2. Switch the machine on and choose one of the six programs on the touch screen, or set the turntable speed, the carriage speed and the number of top and bottom wraps for this load.
3. Drive the pallet onto the turntable with a stacker or a pallet truck and attach the end of the film to the load.
4. Press start. The machine weighs the load, turns the pallet and wraps it from the bottom to the top of the load and back, as the program says.
5. Cut the film at the end of the cycle and take the pallet off. The weight is on the screen.

Settings and maintenance

• Programs. Six programs are stored on the touch screen: the number of wraps at the bottom and at the top, the turntable speed and the carriage speed for each type of load.
• Film tension. Set it for the load: high enough to hold the pallet together, low enough not to crush what is inside.
• Film. Stretch film 500 mm wide and 14 micron thick on a 76 mm core. A thicker film holds more, a thinner one costs less per pallet, the machine takes both.
• Scale. The scale is part of the machine and needs no separate station; check it against a known weight from time to time.
• Maintenance. Switch the machine off before any work. Keep the turntable and the rollers clean of film and dust, and check the chain of the column and the safety devices regularly.

Choosing and operating the SMARTWRAP X2 PRE-STRETCH pallet wrapper

Common mistakes include selecting a turntable that is too small for oversized pallets, or setting film tension too high for fragile goods. To avoid these, measure your typical and largest loads, and test film tension on sample pallets.

Before you order a pallet wrapper

The price on this page depends on the turntable and the wrapping height, so pick them before you order. A few details decide which version suits your dispatch: check them, or send them to us and we will go through them with you.

• Pallet size. The turntable is 1500, 1650, 1800, 2000 or 2200 mm. It has to carry the whole pallet, including anything that sticks out.
• Load height. Wrapping height 2200, 2600 or 3000 mm; the column is 2000, 2400 or 2800 mm high, so a higher wrap also needs a higher ceiling.
• Weight. Up to 2000 kg per pallet. The scale weighs the load during the cycle.
• Power. 220 V, 50/60 Hz, single phase, 10 A, 1.5 kW. An ordinary socket, no compressed air.
• Space. With the 1500 mm turntable and the 2000 mm column the machine measures 2444 × 1500 × 2100 mm and weighs 550 kg. The length is the turntable plus 944 mm, the width is the turntable itself and the height is the column plus 100 mm, so a bigger turntable needs a longer and wider place. Leave room around it for a stacker or a pallet truck.
