SMITH Electric Stacker 3,5m 350cm 1500 kg
3,499€
- Affordable electric pallet stapler & low maintenance
- Fork size: 570*1150mm – for EURO pallet
- Ergonomic – very stable
- Load capacity 1500 kg or 1.5t
- 12 months’ warranty
- Lifting height: 350cm or 3500mm
- Easy to use and simple to be adjusted
- Electric pallet stacker + 2 batteries (2*12V/100AH) + charger (24V/10A, Europen standard)
- Description
- Additional information
Description

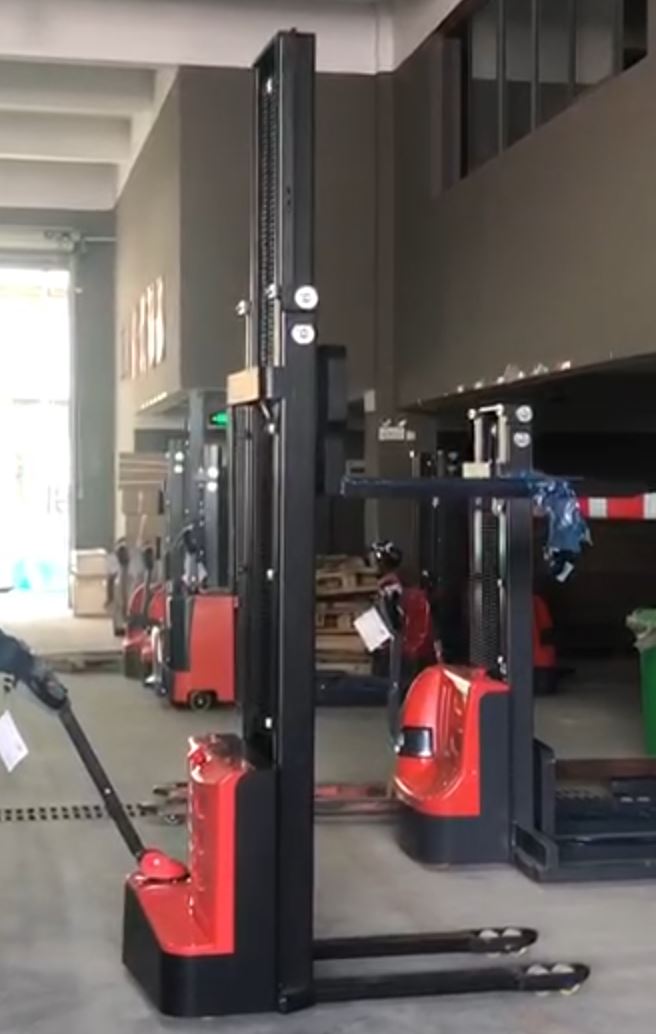

SMITH Electric Stacker 3,5 m 350 cm 1500 kg
The Electric stacker SMITH can be used for lifting and transporting heavy objects and pallets. The electric stacker is an affordable, lightweight and powerful forklift to have around. This electric pallet stacker is designed to be used with two hands and it is the most stable in this category of electric pallet stackers. The electric stacker is highly customizable and can lift various objects and pallets. The electric stacker has two motors. One is for lifting and one is for driving. The lifting motor has the power of 24V/2,2KW and the driving motor has the power of 24V/0.75KW. This electric stacker comes with 2 batteries and a charger. Batteries are very powerful and allow you to use an electric stacker for several hours without recharging. Recharging is very fast, therefore, you will not waste time waiting. The maneuverability and ease of operation with this electric stacker will allow you to use it for lifting pallets or objects from the ground and putting them on the shelf or in the truck or for unloading the truck. Electric stacker SMITH is also designed in a way that can be easily operated and it doesn’t use a lot of space. It has a 12-month warranty and service is available only in the European Union.
What is the price of an electric stacker SMITH?
Electric stacker SMITH is one of the cheapest electric stackers out there. However, the price of an electric stacker does not reflect on the quality. Despite it being affordable, the electric stacker is made out of high-quality materials and it has implemented the latest lifting and driving technology. The price of the electric pallet stacker is displayed above. The electric stacker has a 12-month warranty and comes with two batteries 2*12V/100AH.
Advantages of electric stacker SMITH:
- The side-driven design effectively reduces the size of the operation channel. With a small turning radius and better view, this stacker is suitable for narrow spaces.
- Though it is an economical electric stacker, it is still equipped with high-power and high. performance lifting pump station, which ensures good lifting.
- The turtle speed switch on the handle makes low-speed control more precise.
- German imported waterproof micro-switches are built for usage in cold, damp, dusty and other harsh environments.
- YONGCI motor drive system is small in size, lightweight, low loss, and highly efficient.
Where to use electric stacker SMITH?
Electric stacker SMITH is a very affordable electric forklift, its value is easily reflected when it is introduced into the packaging or transporting processes of any industry. It eases into the workflow and helps double, even sometimes triple the efficiency of its users. With the electric stacker manual heavy lifting is eliminated from the workspace. This reduces any occurrence of accidents in the factory or warehouse. Since the source of power is electricity, the electric stacker is very clean and doesn’t produce and toxic gas, therefore it can be used indoors. There is no need for worry of tripping over wires and the need for cable management. The electric stacker uses a battery and comes with two batteries as stated earlier. This allows a seamless workflow. Since recharging is very fast. there is no need for stopping the workflow to charge the battery. This electric pallet stacker has been built to be very stable and robust, it can easily transport and lift heavy objects in different shapes.
Electric stacker SMITH is widely used in the paper, aluminum, textile, steel, logistics, farm, chemical, metal industries. Electric pallet stacker SMITH has a very robust body and it is easy to use. The electric stacker moves fast, however, it can be easily controlled and maneuvered. The electric stacker is beautiful and strong. With the electric pallet stacker, you will be able to automate operations and speed uplifting and transporting activities. The electric pallet stacker SMITH has a high degree of automation, simple operation and it is easy to understand. The body of the electric stacker is made of high-strength alloy materials and engineering plastics, which is durable in use. The electric stacker is easy to move and can be used for various sizes of packages.
Specs of SMITH Electric Stacker 350cm 1500 kg
| Model: SMITH electric stacker | 1535 | |
| Power unit | Electric | |
| Operation | Pedestrian | |
| Rated traction weight | kg | 1500 |
| Load center | c (mm) | 600 |
| Axle center to fork face | x (mm) | 720 |
| Wheelbase | y (mm) | 1167 |
| Wheels type | PU | |
| Driving wheels size | Ø x w (mm) | Ø210 x 70 |
| Bearing wheel size | Ø x w (mm) | Ø80 x 70 |
| additional wheels (dimensions) | Ø x w (mm) | Ø115 x 55 |
| Wheels, number front/rear (x= driven) | 1x+1/4 | |
| Track width | b10 (mm) | 522 |
| Track width | b11 (mm) | 410/535 |
| Height of mast, lowered | h1 (mm) | 2245 |
| Free lift | h2 (mm) | 0 |
| Lift | h3 (mm) | 3500 |
| Height of mast, extended | h4 (mm) | 3924 |
| Overall height (With handle) | h14 (mm) | 700/1225 |
| Overall length | l1 (mm) | 1740 |
| Length to fork face | l2 (mm) | 590 |
| Overall width | b1/b2 (mm) | 795 |
| Fork dimensions | s/e/l (mm) | 60/160/1150 |
| Width of forks | b5 (mm) | 570/695 |
| Min Ground clearance | m2 (mm) | 26 |
| Aisle width with palet 1000 x 1200 across forks | Ast (mm) | 2074 |
| Aisle width with palet 800 x 1200 along with forks | Ast (mm) | 2040 |
| Min. Turning radius | Wa (mm) | 1342 |
| Travel speed, laden/unladen | (km/h) | 4.0/4.2 |
| Lifting speed with/without load | (mm/s) | 92/136 |
| Lowering speed with/with load | (%) | 112/98 |
| Maximum climbing ability with/without load | 6/8 | |
| Service brake | (kW) | Electromagnetic |
| Driving motor, 60-minute rating | (kW) | 0.75 |
| Lift motor rating at S3 15% | 2.2 | |
| The battery according to DIN 43531/35/36 A,B, C, no | no | |
| Battery voltage/rated capacity | (V/Ah) | 2×12/100 |
| Battery weight (± 5%) | (kg) | 2×27 |
| Type of driving control | DC | |
| Noise level at the operator’s ear | (dB(A)) | 69 |
| Steering type | Mechanical | |
| Weight | kg | 525 |
Lifting curve of Electric Stacker SMITH 350cm 1500 kg
How to use electric pallet stacker SMITH?
The Ergonomic and robust design of this electric pallet stacker helps provide maximum operator comfort during use. It is easy to operate and its two-handed operation allows for flexibility during use. A single switch of a key starts the electric stacker. On the handle, there are two switches. One is moving the forks up and down and another is moving the electric stacker. If you are picking up the pallet you simply drive the electric stacker below the pallet and lift it a little bit. Then use another switch and drive the electric stacker to the desired location. When on desired location press the switch for lifting and lift the pallet to the desired height and move the electric stacker forward so the pallet is inside the truck or shelf. Then lower the forks so the pallet will touch the ground and move the forklift out. The same process can be used for lifting up other objects. If objects are not in a shape that can be lifted, place the object on the pallet and fasten it, so it will be stable. Electric stacker SMITH has a very strong lifting and driving motor. It can lift a load that weighs 1500kg, 3.5m or 3500mm high. The driving speed is around 4 km per hour. Electric stacker weights around 465 kg and has two batteries with a capacity of 12V/100AH. The electric stacker SMITH is built to last and to withstand usage in factories or warehouses. Theelectric pallet stacker has a one-year warranty and it is serviced in the European Union.
Electric stacker SMITH features:
Electric stacker SMITH video:
Additional information
| Weight | 525 kg |
|---|
