Description
HIPO semi-automatic strapping machine 5-15mm (3/16″ to 9/16″) banding machine for plastic PP strap
The High-quality semi-automatic strapping machine 5-15mm (3/16″ to 9/16″) HIPO is one of the best stable and reliable semi-automatic machines out there. This semi-automatic strapping machine is developed by using top-grade material and advanced techniques in compliance with international quality standards. The semi-automatic banding machine can be used with polypropylene (PP) straps with a width of 5-15mm (3/16″ to 9/16″). The length, width and height of the package shouldn’t be less than 120mm.
Semi-automatic Strapping Machine is easy to manipulate. The strapping tension can be adjusted from 30 to 450N. In the package with the machine are all the necessary accessories so you are able to get your bundling process started as soon as the package arrives.
Semi-automatic Strapping Machine can be used in all sorts of industries or warehouses and will speed up your work thus making your employees more productive. The semi-automatic machine uses the latest strapping technology and it is designed to deliver a high-grade friction weld seal.
Features of the semi-automatic strapping machine for PP strap:
- Reliable PCB and control components.
-
Minimal product dimensions: the length, width, and height of the package shouldn’t be less than 120mm.
- Mechanical tension control.
- Motor shut off for energy saving.
- Easy to operate, less maintenance.
- Hinged table top.
Usage of the semi-automatic strapping machine
Usage of the semi-automatic strapping machine- HIPO semi-automatic strapping machine 5-15mm (3/16″ to 9/16″) is widely used in all sorts of industries and warehouses.
- The semi-automatic strapping machine is ideal for speeding up the packing process.
- It is easy to use and to adjust.
- With the semi-automatic PP strapping machine, you can tension, seal and cut the plastic PP strap.
Packing speed is less them 3 seconds per strap. Tension range is between 3-45kg. The hot-adhering position is at the bottom of the semi-automatic packing machine. Working table is high 730mm. The semi-automatic packing machine is used for PP straps with the width of 5-15mm and thickness of 0.5-0.8mm. Applicable strip spool is 210mm x 178mm.
The machine is durable, all of its body and components are made of high strength alloy materials, large tightening force, special structure design, easy steel, aluminum, heavy-duty packing, tightening and packaging. It is widely used for paper, aluminum, wood, wooden packaging, chemical fiber, cotton, tobacco, chemicals, foodstuff and daily merchandise, and metal products industries.
Specifications of semi-automatic packing machine:
| Usage: | HIPO semi-automatic strapping machine 5-15mm (3/16″ to 9/16″) banding machine for plastic PP strap |
| Size of the strapping machine (mm): | L840 W550 H730 |
| Weight: | 60 Kg |
| Power supply | 220V/50/60Hz 1PH 0.25Kw |
| Minimal product dimensions: | Length, Width, and Height must be bigger than 120mm |
| Strap width: | from 5-15mm (3/16″ to 9/16″) |
| Strap thickness: | 0.5 – 0.8 mm |
| Appy straps: | PP strap |
| Seal: | high-grade friction weld seal, vibration welding (heating by friction) |
| Maximum tension force: | Max Tension: 3-45 Kg |
| Applicable Strap Spool | 210mm*178mm |
How to use semi-automatic strapping machine HIPO:
- Power switch: Turn ON to start the machine, and OFF to stop the machine.
- Power indicator light (POWER): Turn on the power switch, the light is on.
- Length adjustment for strap feeding (TIMER): Every one scale is about 500mm.For any adjustment that is required turn it in the clockwise direction. The length of the strap will then become longer.
- Strap tension button (TENSION): Choose the tension degree of a strap according to the size of the package.
- Manual feeding/Reset button (FEED/HOME): Press the FEED button to help feed the straps. The longer you press, the longer the strap will be. If the machine is not at the home position, press the HOME button so that the machine will return to its home position.
- Cooling time adjustment (COOL TIME): Depending on the strap and the different tensile strength, adjust the cooling time, for better adhesion effects.
- Safety door switch: If the top cover is opened, the machine will stop running automatically. (Please turn off the main power switch before opening top cover.)

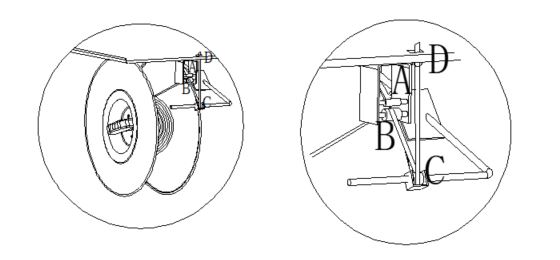

Pull straps out from the strap reel and check whether the strap head is down (if not, then you need to change the side of strap reel), thread straps out from the bottom of pulley A and from the top of pulley B. Then thread the strap through wheel C and thread it upwards to the strap slot D which is on the bottom board, then thread it upwards along the guide roll to the distance between rollers. Press the FEED button, then the straps will dispense automatically.
