SMARTWRAP X2 Stretch Wrapping Machine with Scale and Printer | 2000 kg, up to 3000 mm wrapping height

Summary

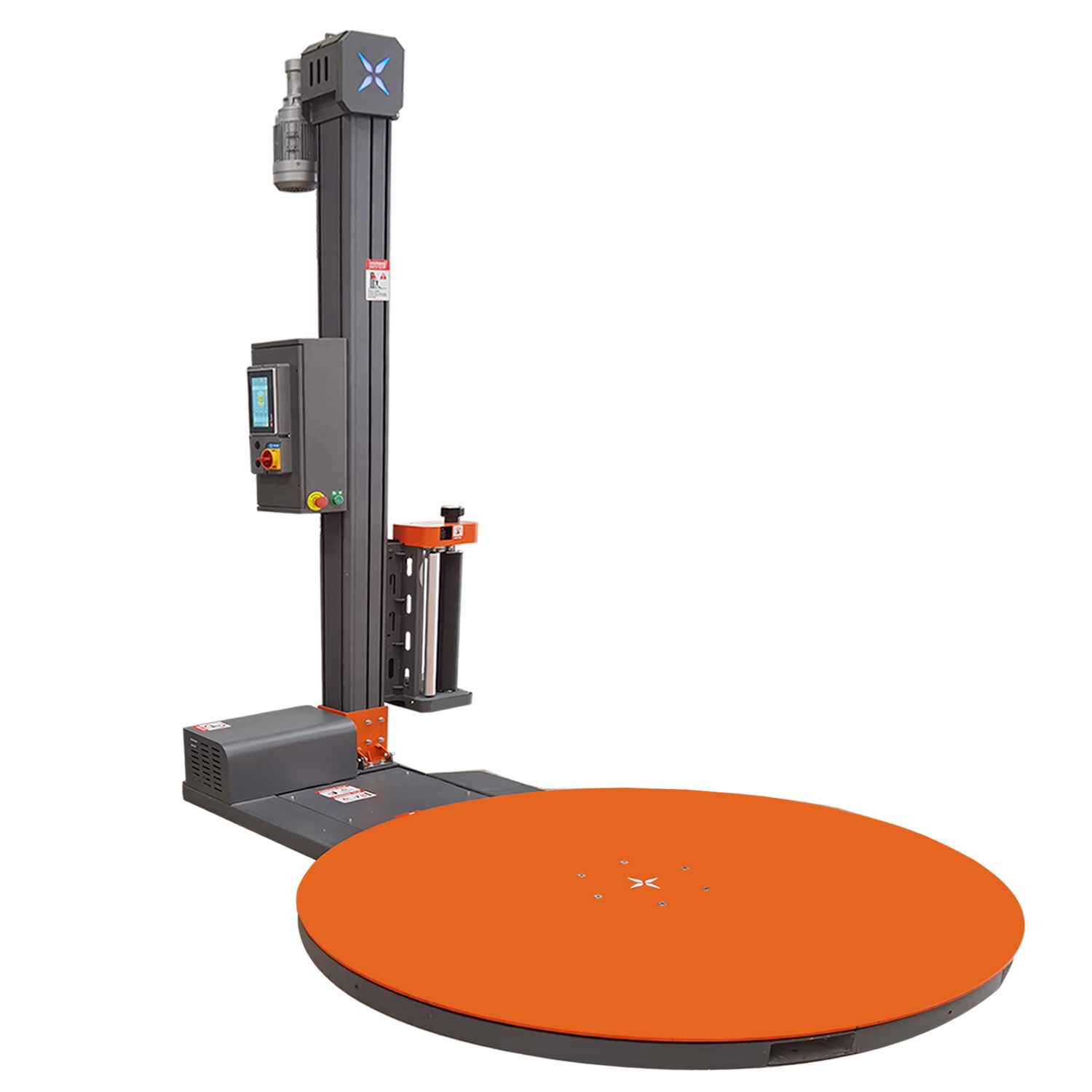

SMARTWRAP X2 Stretch Wrapping Machine with Scale and Printer

The SMARTWRAP X2 is a turntable pallet wrapper built for professional warehouse, logistics and production environments that need reliable load containment together with accurate weighing and labelling. As a complete stretch wrapping machine with scale, it combines film application, an integrated scale and a label printer in a single unit, so a pallet can be secured, weighed and labelled in one continuous operation.

This is a configurable product range: the turntable is available in five diameters (1500, 1650, 1800, 2000 and 2200 mm) and three wrapping heights (2200, 2600 and 3000 mm), allowing you to match the machine to your pallet sizes and throughput. With a maximum load capacity of 2000 kg, it handles heavy, dense and mixed pallets across demanding shift work.

By putting weighing and printing on the same platform, this stretch wrapping machine with scale removes a separate handling step, reduces double-handling and helps keep dispatch data consistent from the moment the pallet leaves the floor.

Specifications of the SMARTWRAP X2 Stretch Wrapping Machine with Scale

Key Features and Benefits of the SMARTWRAP X2 Stretch Wrapping Machine with Scale

• Integrated scale and label printer: weigh and label the pallet during wrapping, so weight data and dispatch labels are captured without extra handling stations.
• Extruded aluminium column (4000 t) with lifetime warranty: a rigid, corrosion-resistant mast that keeps the film carriage stable at full 3000 mm heights.
• Double chain lifting: smooth and balanced carriage travel, reducing wear and helping consistent film placement.
• SICK (Germany) photoelectric height sensor: detects pallet height automatically so film is applied only where needed, saving material.

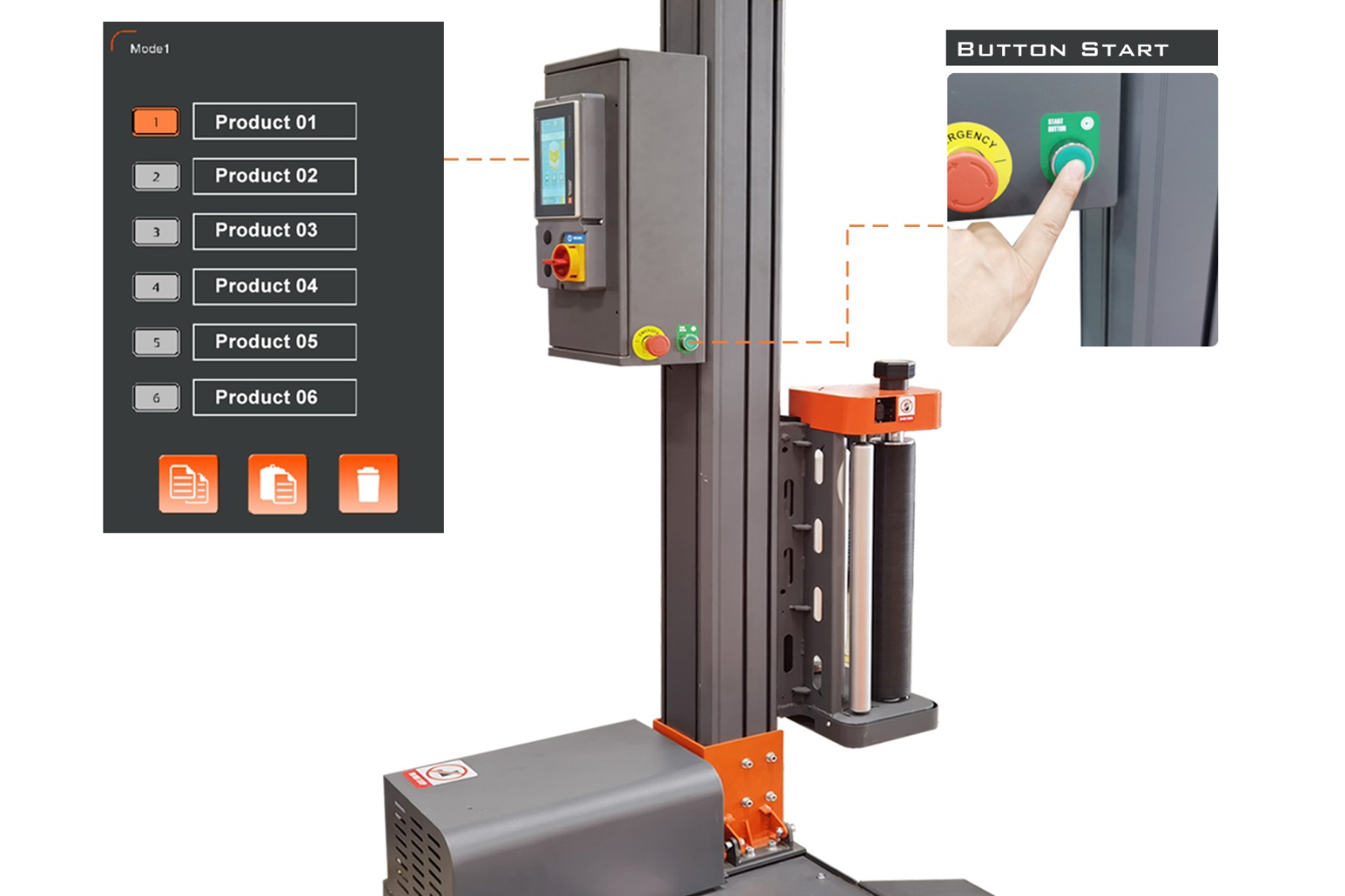

• Touch screen control with 6 memory programs: store recipes for different loads and recall them with one-button start for repeatable results.
• Adjustable turntable and carriage speed: fine-tune wrapping to load stability and film consumption.
• 2000 kg capacity: handles heavy and mixed pallets typical of industrial dispatch.

How to use the SMARTWRAP X2

• Recall one of the 6 stored wrapping programs on the touch screen, or set turntable and carriage speed for the specific load.
• Press the one-button start; the SICK photoelectric sensor detects the pallet height automatically.
• The machine wraps the load while the integrated scale records the weight and the printer produces the label.
• Remove the wrapped, weighed and labelled pallet once the cycle completes, ready for dispatch.

Where to Use the SMARTWRAP X2 Stretch Wrapping Machine with Scale

The SMARTWRAP X2 suits warehouse, logistics and production operations that dispatch palletised goods and need weight capture at the point of wrapping. As a stretch wrapper machine with weighing built into the turntable, it is well matched to shipping and dispatch areas, distribution centres and manufacturing lines where each pallet must be stabilised, weighed and labelled before it moves on.

Because the scale and printer are built into the wrapping cycle, sites can replace a separate weighing station and manual labelling step with one operation — a pallet scale and wrapper in a single frame, freeing floor space and reducing the number of times an operator touches each load. With a footprint of 260 × 150 × 80 cm and configurable turntable diameters, the unit can be planned into existing dispatch lanes and pallet flows. This makes it a practical choice for operations that ship a steady mix of standard and oversized pallets and need consistent, traceable weight data leaving the floor.

Design and compatibility

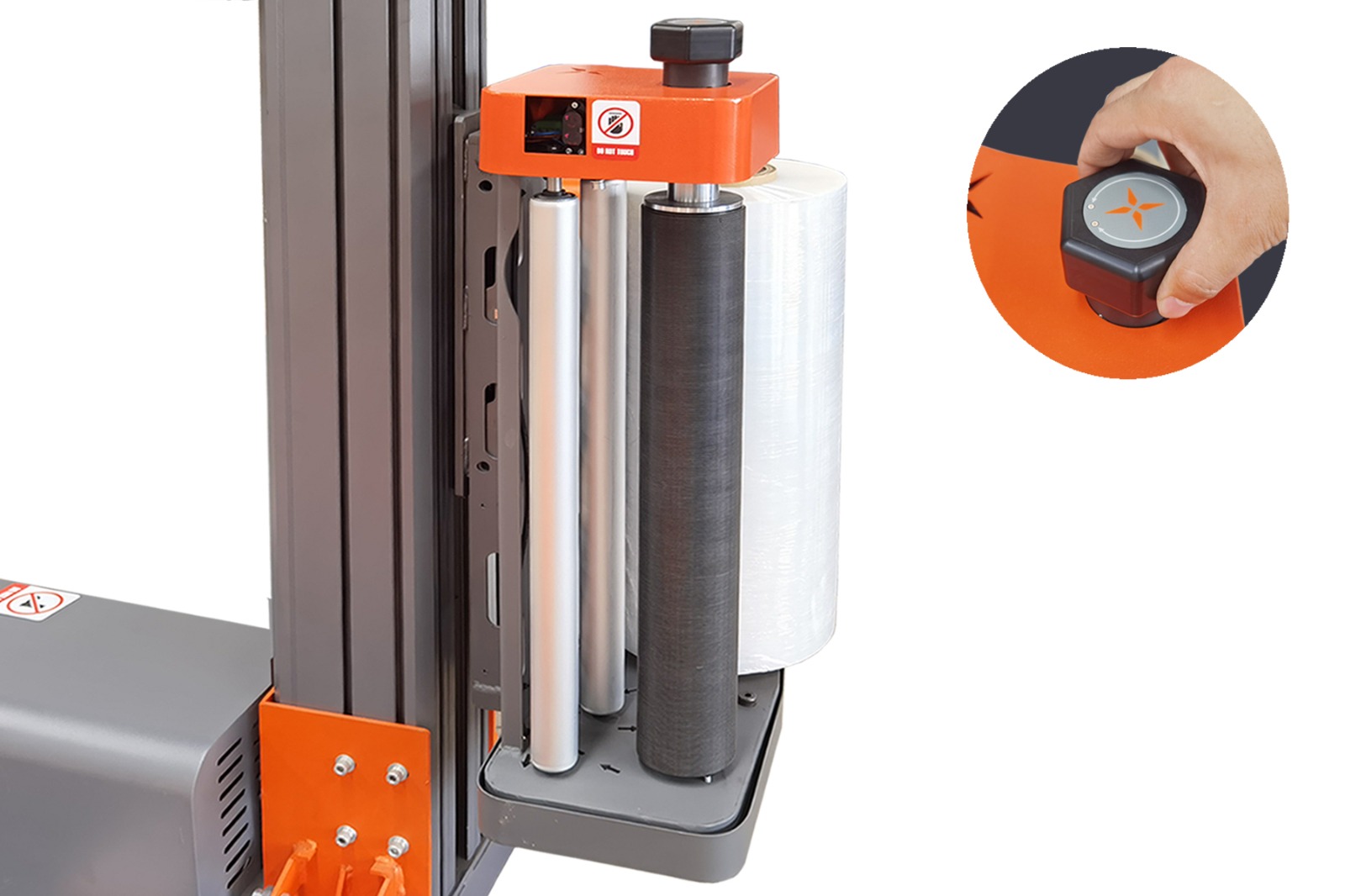

The machine is built around an extruded aluminium column (4000 t) with double chain lifting and a low 81 mm turntable that eases pallet loading, with a ramp available as an option for pallet-truck access. It uses mechanical stretch film delivery and is designed for 500 mm wide film on a 76 mm core, the common industrial standard. The anti-pressure and anti-fall device is located at the bottom of the film carriage, protecting the operator and the load if the carriage meets an obstruction during travel. Configurable turntable diameters from 1500 to 2200 mm and wrapping heights from 2200 to 3000 mm let you specify the unit for your pallet footprint and load height, with a top pressure option to hold lighter or unstable loads flat during wrapping.

Performance and capabilities

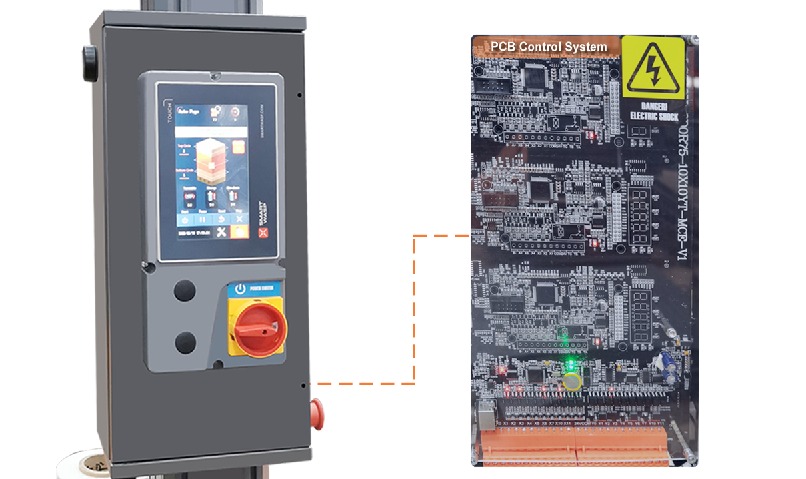

With a turntable speed of 0-12 rpm and a carriage speed of 0-5.9 m/min (both adjustable), the SMARTWRAP X2 reaches a packing speed of up to 30 loads per hour while carrying pallets up to 2000 kg. The 1.2 kW drive runs on a 220 V, 50/60 Hz single-phase supply, and the PCB control with four independent chips distributes cycle management across dedicated circuits, managing wrapping precisely across the six memory programs. This makes the stretch wrapping machine with scale a strong choice for steady, medium-to-high volume dispatch work.

Safety and Durability

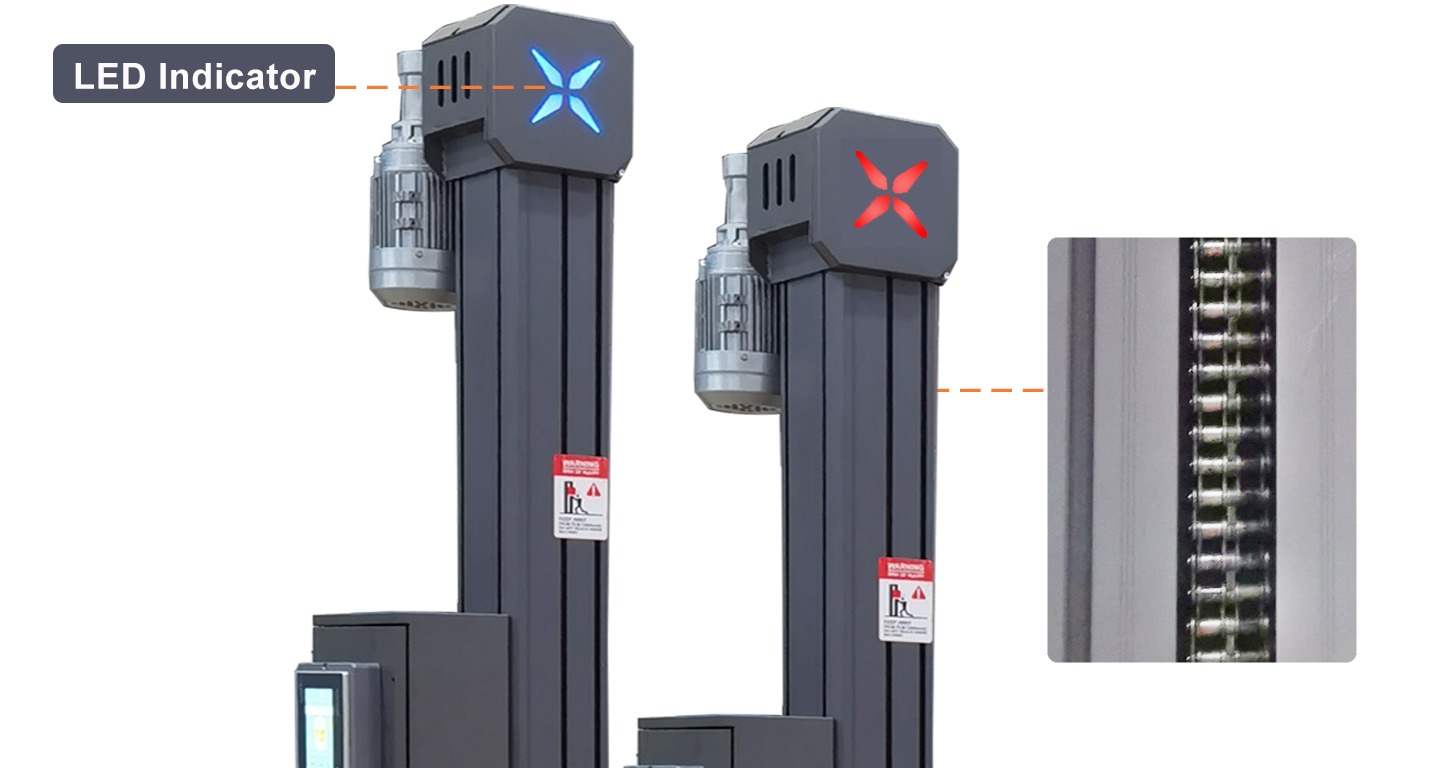

Safety features include soft start/stop, an intelligent alarm, an anti-pressure and anti-fall device at the bottom of the film carriage, an emergency stop and a three-color LED that gives operators an at-a-glance view of machine status across the working area. The aluminium column carries a lifetime warranty and operating noise is a moderate 75 dB. The machine is CE certified to 2006/42/EC, 2014/35/EC and 2004/30/EC.

Buy the SMARTWRAP X2 Stretch Wrapping Machine with Scale

The SMARTWRAP X2 brings wrapping, weighing and labelling together in one durable, CE-certified unit, configurable across five turntable diameters and three wrapping heights up to a 2000 kg capacity. If you need a dependable pallet wrapper with scale and label printer for daily dispatch, order this stretch wrapping machine with scale today. It ships with a 12-month warranty.
