Stretch wrapping machine SMARTWRAP-X

Pallet wrapping machine SMARTWRAP X

Stretch wrapping machine SMARTWRAP-X

2,999

In stock

2,999

  • Affordable & low maintenance Stretch wrapping machine
  • Easy to use and simple to be adjusted
  • Tri-color LED safety indicator, IoT module
  • 1500mm turntable, 2000mm packing height, max load weight: 1500KG
  • Intelligent touch control with the human-machine delivery system
  • Pre-fix film device, high packing efficiency
  • A comprehensive safety protection system

Order total:

Description

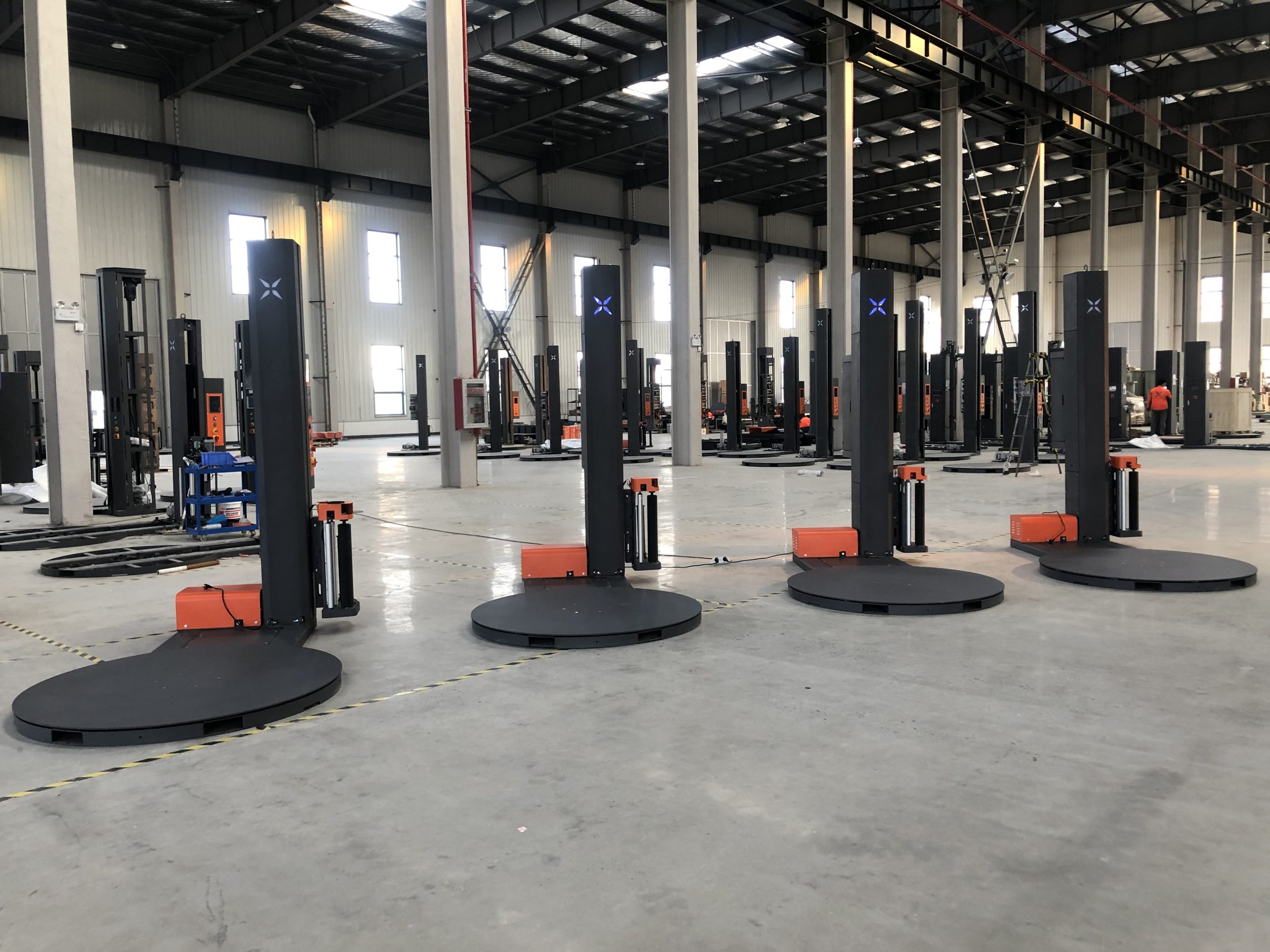

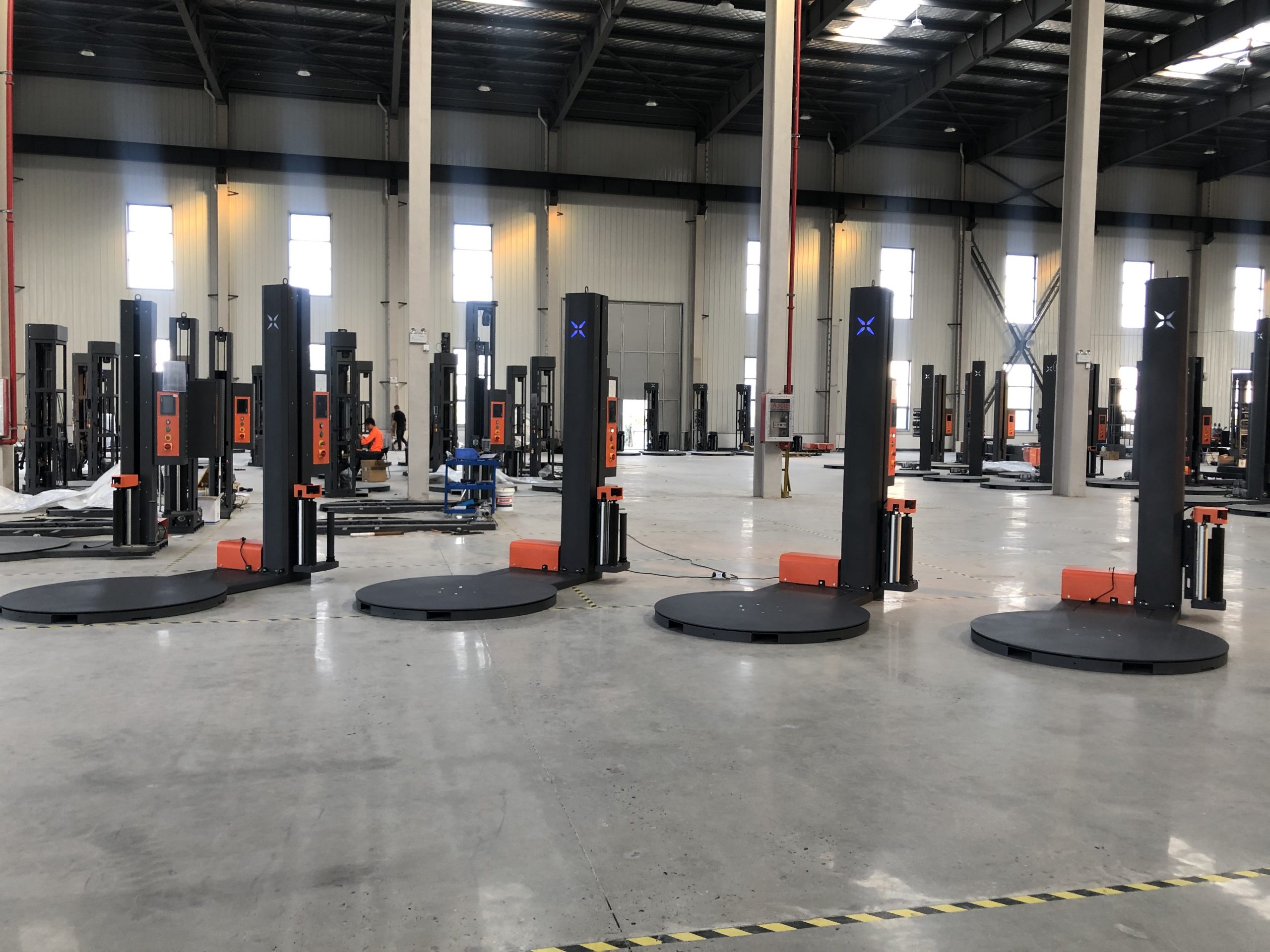

Stretch Wrapping Machine SMARTWRAP-X

Pallet wrapping machine SMARTWRAP XStretch Wrapping Machine SMARTWRAP-X has been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, et. Stretch wrap machines use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet. The turntable of the Stretch Wrapping Machine SMARTWRAP-X is wide 1500mm (on request we can also supply 1650mm/1800mm/2000mm/2200mm/2400mm) and the maximum packing height is 2000mm (on request we can supply 2400mm/2800mm). Pallets which can be put on Stretch wrap machine SMARTWRAP X can weigh 1500kg (on request we can supply also 2000kg, 2500kg). Stretch wrapper SMARTWRAP-X has a comprehensive safety protection system that includes a Fall prevention system, alarm if the film breaks or if there is no film, smooth film unrolling system, bottom pressure, and injury prevention device. It has Intelligent touch screen control with the human-machine delivery system, therefore, communication with the machine is simple and user-friendly. A tri-color LED safety indicator helps the operator see the status of the pallet process right away. In addition to that, our Intelligent Pallet Wrapping Machine SMARTWRAP-X is equipped with an IoT module that provides the possibility for Remote maintenance, free upgrade, and equipment maintenance alarm reminder function. Pallet wrapper SMARTWRAP-X will dramatically increase Stretch wrapping productivity and free worker for doing demanding wrapping tasks. By using the wrapping machine SMARTWRAP-X you will decrease material costs because Hand wrapping generally has the highest material cost because there is no consistency of film usage and no substantial pre-stretch. It is also very difficult to manually wrap a safe-to-ship load consistently. We offer fast EU delivery and a 12-month warranty in all EU countries.



What is the price of the Stretch Wrapping Machine SMARTWRAP-X?

stretch wrap machine SMART WRAP X price

Although Stretch Wrapping Machine SMARTWRAP-X is made of high-quality materials, it has implemented the latest Intelligent IoT technology and a comprehensive safety protection system the price of it is still very competitive. The price of the Stretch Wrapping Machine SMARTWRAP-X is displayed at the beginning of the webpage. We can say that it is the cheapest Stretch wrapper with these characteristics on the EU market. However, the price of the stretch wrap machine does not reflect the quality. Despite it is affordable, the pallet wrapper is made out of high-quality metal and hard plastic and it has implemented the latest wrapping technology. Components are provided by Schneider, X-Line, and JSK. Pallet Wrapping Machine SMARTWRAP-X has all needed certificates, CE and even exceeds industry standards and requirements.



Main Features of stretch wrap machine SMARTWRAP-X

  1. 1500mm turntable
  2. 2000mm packing height
  3. Max load weight: 1500KG
  4. Pre-fix film device, high packing efficiency
  5. A comprehensive safety protection system



Pallet wrapping machine SMARTWRAP X Touch screenAdvantages of Stretch wrapper SMARTWRAP-X

  • Pallet stretch wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
  • The film provides extra support during transportation and storage to protect them from dust, moisture, or damage
  • The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, et
  • A comprehensive safety protection system – Fall prevention system, no film&break film alarm, smooth film unrolling system, bottom pressure, and injury prevention device.
  • Intelligent touch control with the human-machine delivery system. Our human-machine delivery system uses SMARTWASP which is independently developed, with remote maintenance system, troubleshooting and guidance function, all the SMARTWASP winding machine unified operating system, make use of more convenient, easier to maintain.
  • Tri-color LED safety indicator
  • IoT module – Remote maintenance equipment, free upgrade, and equipment maintenance alarm reminder function.



Specification of Stretch Wrapping Machine SMARTWRAP-X

BrandSMARTWRAP
ModelX
Load weight1500kg (on request 2000kg, 2500kg)
Turntable speed3-10rpm
Packing speed25-30 loads/h
Column height2400mm (on request 2800mm/3200mm)
Packing height2000mm (on request 2400mm/2800mm)
Turntable size1500mm (on request 1650mm/1800mm/2000mm/2200mm/2400mm)
Turntable height86.7mm
Up&down speed1.5-5m/min
Film Width500mm
Film paper Core76mm
Noise decibel≤75dB(A)
Working environmentHumidity: ≤90%, Temperature: -10-40℃
Machine power0.75KW/0.375KW
Voltage2P AC 220V 50Hz
Machine weight450kg(1500mm)  520kg(1650mm)
Machine sizeL2335*W1500*H2400(mm)
Soft   start&stopIncluded
Intelligent AlarmIncluded
Stop at original starting heightIncluded
Turntable lockIncluded
Cut filmManual
Fix film on the palletArtificial supplementary
PLCX-Line
InverterJSK/X-Line
Touch screenSmart Wasp
ContactsSchneider
Button switchSchneider
Approaching switchSICK
Safety deviceFilm carriage bottom safety   sensor
Industrial appearanceMetal plate
Remote controlOptional
CertificateCE



Floor view of Stretch wrapper SMARTWRAP-X

Pallet wrapping machine SMARTWRAP X floor view

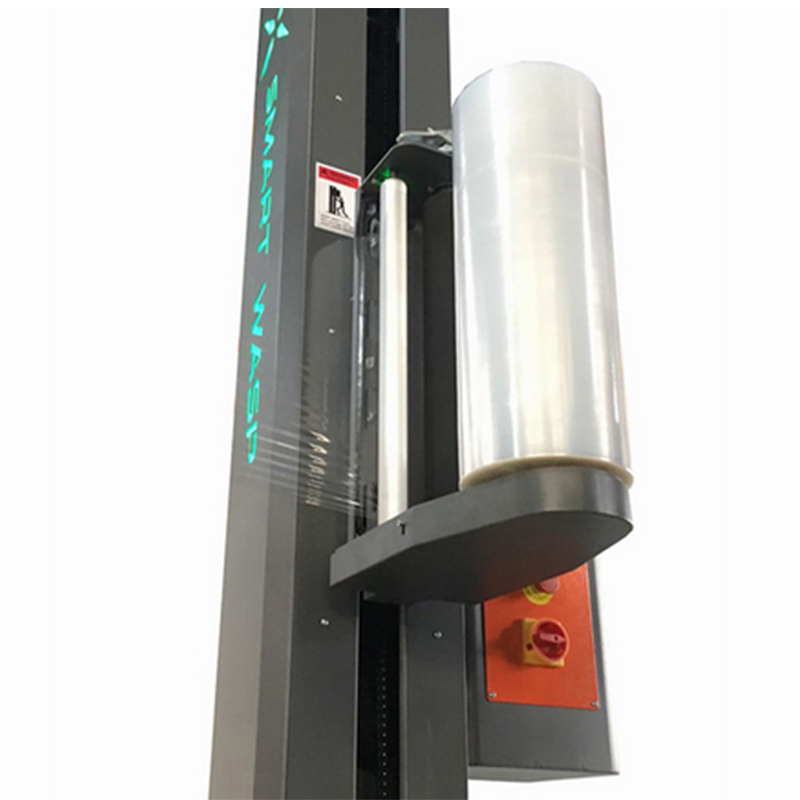

Pallet wrapping machine SMARTWRAP X film carriage

How does the Stretch wrapper SMARTWRAP-X work?

The load is placed on the stretch wrapper wrap zone and stretch film is applied. Turntable models will rotate the load on a turntable that will move and apply the film. The application of the film takes place with the supervision of the operator. The operator places the pallet on the Pallet wrapper and ties a wire of film manually; it will then be continued with the programmed wrapping cycle to finish with the final cutting by the worker, and the expelling from the wrapping machine.



Video of Stretch wrapping machine SMARTWRAP-X

Additional information

Weight450 kg
