Waste baler HSM V-Press 610 eco 12 tons, 120kNm 100kg bales

Waste baler HSM V-Press 610 eco 12 tons, 120kNm 100kg bales

8,699.00

  • Pressing power of 12 tons or 120 KN
  • Bale weight: up to 100 kg (depending on material)
  • Bale size: L 800 x W 600 x H max. 600 mm
  • Made in Germany – High-quality product
  • Fast EU Delivery
  • Plug and play – easy to install and simple to use
  • Dimensions: 1198 x 823 x 1986 mm (Width x Depth x Height:)
  • Machine weight: 540kg
  • Filling opening: W 800 x D 495 mm
  • Press box dimensions: W 800 x D 600 x H 1045 mm
  • Motor: 3 kW
  • Voltage / frequency: 3 x 400 V / 50 Hz
  • Volume when pressed: 80 dB
Category:
  • Description

Description

Waste baler HSM V-Press 610 eco

The automatic baling press HSM V-Press 610 is ideally suited to compress packaging materials such as foil, cardboard, or paper into bales. The baling press is best used where the material accumulates. Ensure that your packaging waste is disposed of economically.

  • Pressing power of 12 tons or 120 KN
  • Bale weight: up to 100 kg (depending on material)
  • Bale size: L 800 x W 600 x H max. 600 mm
  • Made in Germany – High-quality product
  • Fast EU Delivery
  • Plug and play – easy to install and simple to use
  • Dimensions: 1198 x 823 x 1986 mm (Width x Depth x Height:)
  • Machine weight: 540kg
  • Filling opening: W 800 x D 495 mm
  • Press box dimensions: W 800 x D 600 x H 1045 mm
  • Motor: 3 kW
  • Voltage / frequency: 3 x 400 V / 50 Hz
  • Volume when pressed: 80 dB

With the automatic baling press HSM V-Press 610, you can remove used packaging materials such as B. Press foil, cardboard or wrapping paper into firm bales and send them to recycling. Due to the small space requirement of just 2-3 m², the baling press can be set up right where the material arises. This saves you long transport routes and improves the internal logistics for the removal of packaging material.

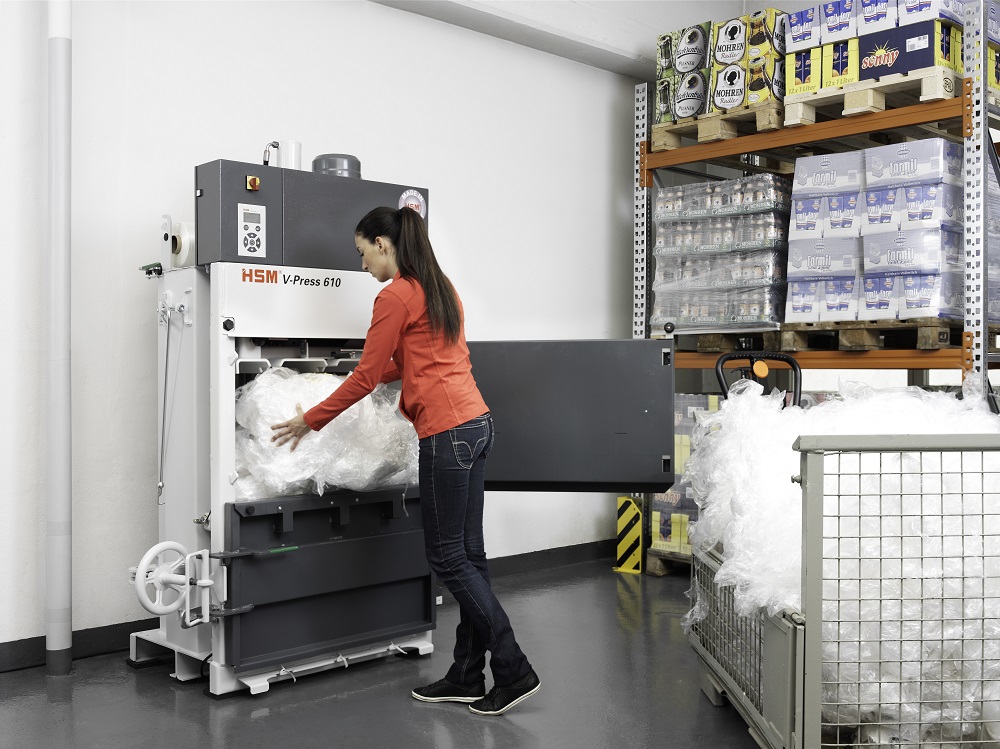

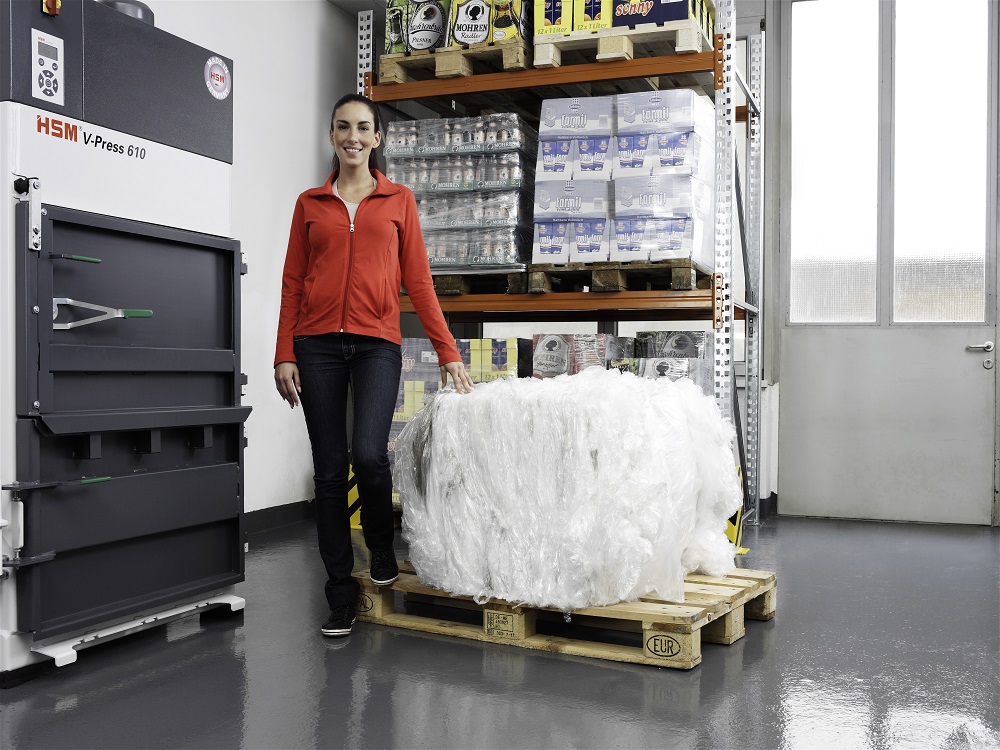

For the compression process, the packaging material is simply filled into the upper half of the machine. A safety switch automatically starts the pressing process when the door is closed. The process stops when the door is opened during the pressing process. A massive press plate compresses the material filled into bales with a weight of up to 100 kg via stable press plate guides with a pressing force of 120 kN. Thanks to a special TorsionControlSystem (TCS), the inclination of the press plate is continuously monitored in all directions. This prevents one-sided loads and optimizes the pressing process. The automatic baling press HSM V-Press 610 is able to process the packaging material to 3-6 bales per hour. The bale is automatically fixed with a strap. The bale is then easily removed from the machine with the help of the mechanical bale ejector and can then e.g. B. be transported away with a pallet truck. Pressed bales are difficult to ignite and thus reduce the risk of fire. The stackable bales are safe in the storage location for later collection by the disposal company. The finished bales can be remunerated depending on the disposal company.

Order the automatic baling press HSM V-Press 610 right here in our shop and compress the packaging volume into compact bales.



Waste baler HSM V-Press 610 eco features

  • Digital display – Convenient membrane keypad with text display, which shows the current status of the machine
  • Number of bales / h: 3-6
  • 400 V three-phase connection
  • HSM TCS (Torsion Control System) for monitoring press ram movement
  • Mechanical bale ejector
  • Handwheel door lock – Easy to handle thanks to counter-rotating thread for quick opening and closing
  • Space-saving recycling of packaging residues
  • Massive press ram and extremely robust press plate guidance
  • Special retaining claws optimize the compression of the pressing material and reduce the number of loading actions
  • Automatic start of the pressing process after closing the door
  • Massive press ram and extremely robust press plate guidance
  • To fill the press, the upper half of the doors are swung to the right

Specifications of Waste baler HSM V-Press 610 eco

ModelHSM V-Press 610
Pressing power:120 kN
Specific pressing power:25 N/cm²
Driving power:3 kW
Voltage / Frequency:400 V / 50 Hz
Cycle time when idling:22 s
Volume throughput in idle operation (theor.):2,5 m³/h
Loading height:655 mm
Loading aperture width x height:800 x 495 mm
Bale length x Bale width x Bale height:800 x 600 x 600 mm
Bale weight (up to):100 kg
Width x Depth x Height:1198 x 823 x 1986 mm
Weight:540 kg
Method of strapping:vertical
Number of strappings:3
Type of consumables:Strapping tape
Industry type:Retail, Logistics & Distribution, Industry & Manufacturing, Print & Packaging
Press material:Plastic film, Mixed Paper, Cardboard, Punch waste/residue
Use for product line:V-Press



Waste baler HSM V-Press 610 eco video
