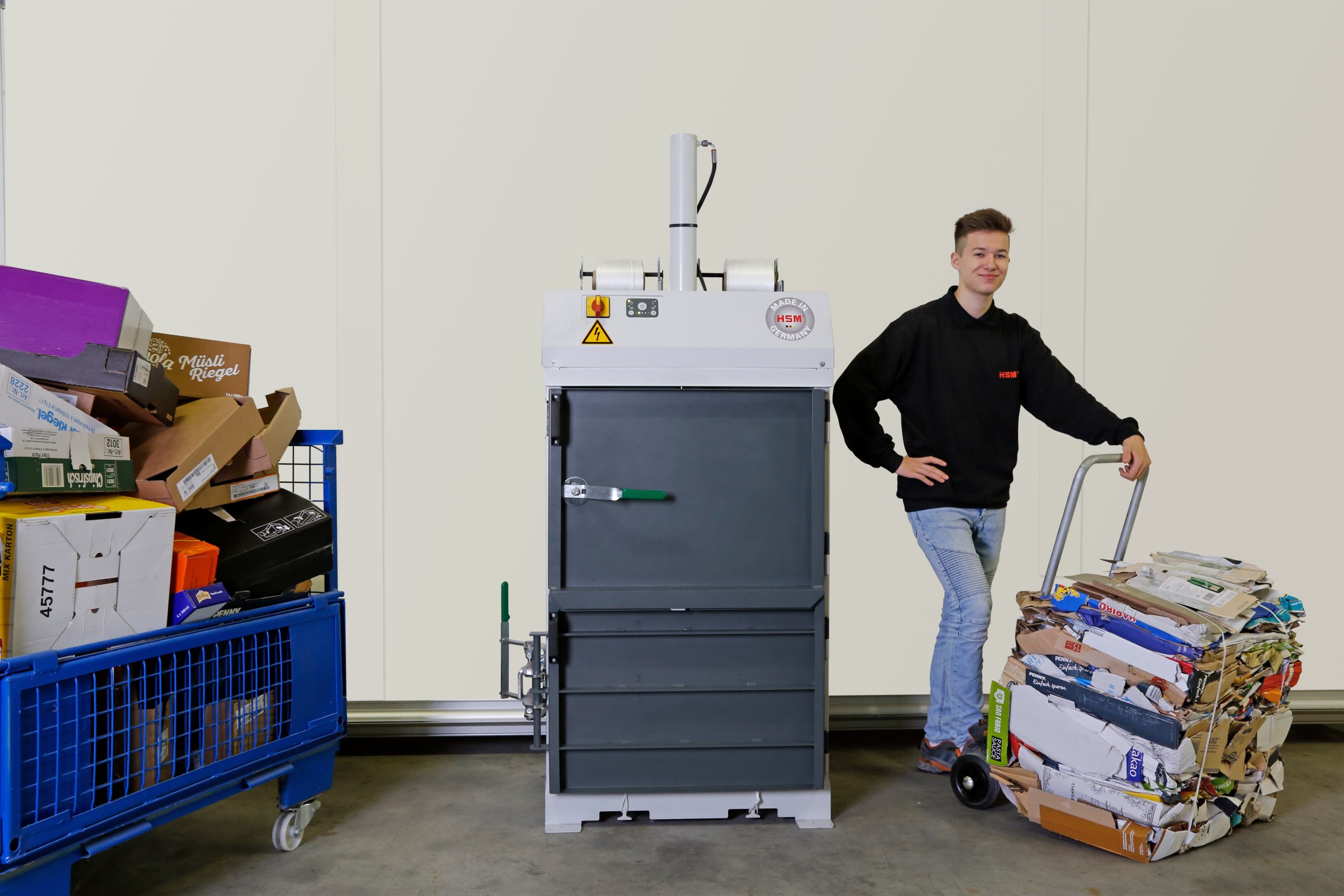

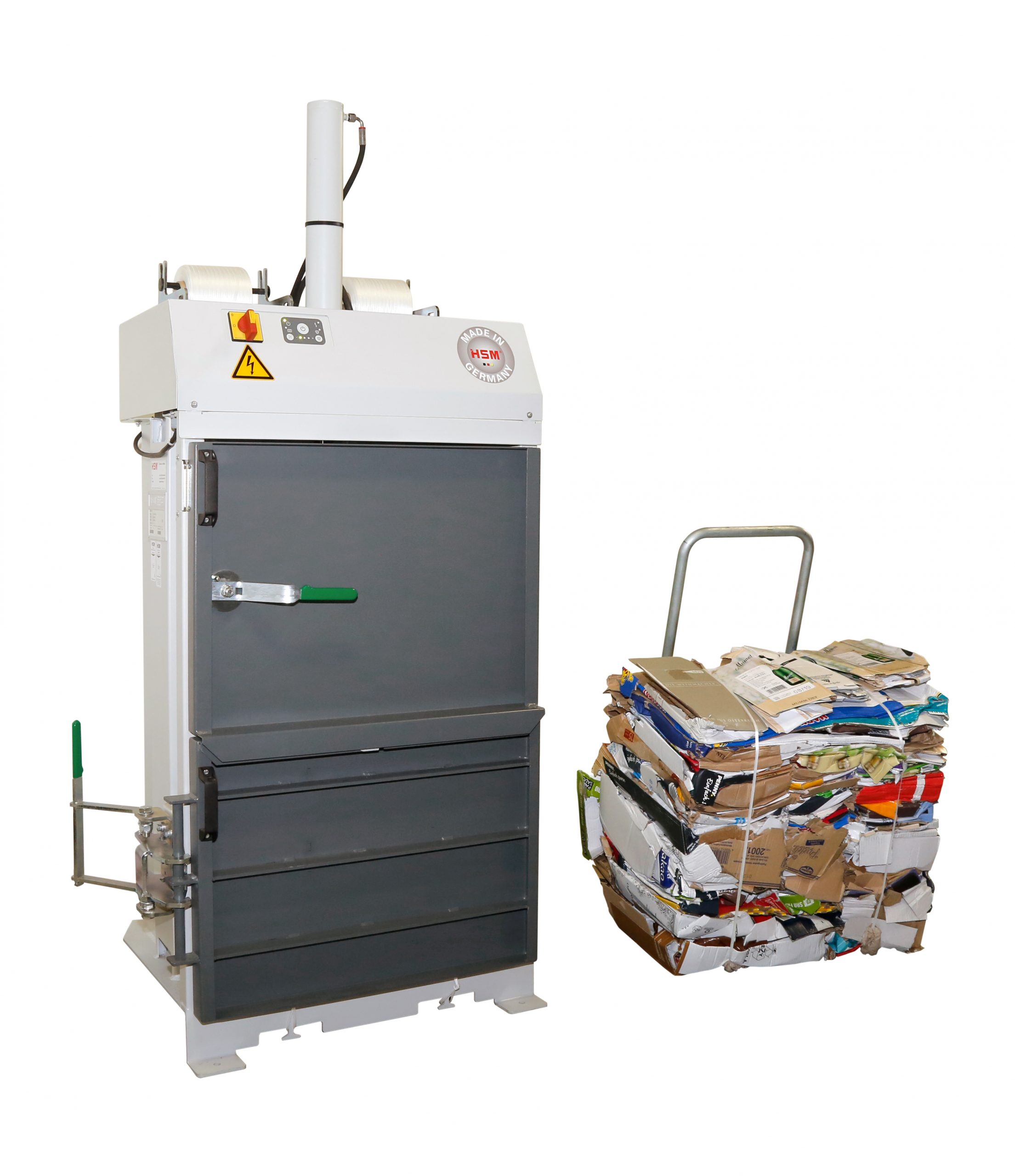

Vertical cardboard baler HSM V-Press 503 eco 3T, 30KN, bale weight 50kg

4,299

  • Vertical Cardboard Baler HSM V-Press 503 eco
  • Pressing power of 3 tons or 30 KN
  • It can make bale up to 50kg
  • Made in Germany – High-quality product
  • Fast EU Delivery
  • Suitable both for cardboard as well as plastic foil
  • Bale removal and transport with discharge trolley
  • Basic equipment: 2 rolls of polyester tape
  • Ergonomic and compact design/dimensions, small footprint
  • Simple operation through the push of a single button
  • Machine door configuration: Double door
Category:
View cart

Description

Vertical cardboard baler HSM V-Press 503 eco

Use the vertical baling press “V-Press 503” from HSM to compress foils, mix paper, and cardboard to a minimum. This model is suitable for low material volumes in the printing and packaging industry, in logistics and freight forwarding, in retail, and in industry and production. With this waste compactor, the volume of waste can be reduced considerably, so you not only save time on disposal but also some costs.

The vertical baling press “V-Press 503” is equipped with a double door, so you only have to open the upper half for filling. This simplifies handling enormously for you, as the garbage cannot fall out again. In addition, the lock itself engages as soon as you close the press door. With a knee lever, you close the hatch completely so that you can start the pressing process. This knee lever guarantees safe handling and sits at the perfect height for easy operation.

  • Pressing power of 3 tons or 30 KN
  • It can make bale up to 50 kg
  • Made in Germany – High-quality product
  • Fast EU Delivery
  • Plug and play – easy to install and simple to use



Vertical cardboard baler HSM V-Press 503 eco features

  • Suitable both for cardboard as well as plastic foil
  • Bale removal and transport with discharge trolley
  • Basic equipment: 2 rolls of polyester tape
  • Ergonomic and compact design/dimensions, small footprint
  • Simple operation through the push of a single button
  • Machine door configuration: Double door
  • To fill the press, the upper half of the doors are swung to the right
  • Machine door lock configuration: Bell-crank lever
  • Self-latching, closing technology
  • The pressing procedure starts automatically upon closing the door
  • Quick and safe opening of the door
  • Upon opening the door, a security switch assures an automatic stop of the pressing procedure
  • Automatic stroke return



Vertical cardboard baler HSM V-Press 503 eco specifications

Vertical cardboard baler HSM V-Press 503 eco
Pressing power in kN30
Motor in kW1.1
Voltage / Frequency1 x 230 V / 50 Hz
Loading aperture W x H in mm700 x 470
Bale weight in kg (depending on material)30 – 50
Bale size L x W x H in mm700 x 500 x max. 600 – 850
Cycle time in idle operation in sec.27
Acoustic level in dB(A)72.1
Press chamber size W x D x H in mm700 x 500 x 1050
Dimensions of machine* W x D x H in mm953 x 679 x 1962
Transport dimensions of machine W x D x H in mm953 x 679 x 1962
Machine weight in kg245
Strapping2-fold with polyester tape



Dimensions and space requirement HSM V-Press 503

Vertical cardboard baler HSM V-Press 503 eco is height 1962 mm, however, the minimum required ceiling height is 2000 mm. The width of Vertical baler HSM V-Press 503 is 953 mm and the depth is 678 mm.

Vertical cardboard baler HSM V-Press 503 eco height Vertical cardboard baler HSM V-Press 503 eco projections

How does vertical cardboard baler HSM V-Press 503 eco work

First, you need to prepare a vertical cardboard baler HSM V-Press 503 by inserting the strap and applying the strap break. Then you start the automatic mode and fill the machine with waste material. The pressing operation starts automatically after you close the door. After the pressing is complete the bale ready signal will trigger. You have to release the strap and pull out the strap and cut it off. Open the bottom door and knot the straps together. Bring the trolly and remove the bale. Check the video below to see the bale pressing process.

How to Strap waste bale of Vertical cardboard baler HSM V-Press 503:

  • Press the illuminated push button
  • The press ram moves to the starting position
  • Open the tape brake (Move lever to the left)
  • Open the loading door (opening angle more than 90 °)
  • Pull the tapes on the rear wall forwards (towards the bale ejection door)
  • Pull the tapes approx. 400 mm over the bale ejection door and cut the tapes
  • Close the loading door
  • Press the illuminated push button
  • The press ram move on to the material again and stops
  • Open the loading door and the bale ejection door (opening angle more than 90 °)
  • Remove the end of the tape from the fastening hook and tie the tape end firmly to the strapping tape (at the top of the bale)
  • Repeat the above steps for both strapping tapes
  • Close the bale ejection door and the loading door
  • Press the illuminated push button
  • The press moves to the starting position
  • Open the loading door and the bale ejection door (opening angle more than 90°)
  • Remove the bales with the help of the bale removal trolley
  • Reattach the tapes in the press chamber to the fixing hooks
  • Close the bale ejection door and the loading door
  • The press is now ready for operation again



Vertical cardboard baler HSM V-Press 503 eco video
