RUBBER automatic box taper machine 48-60mm (Kraft or BOPP tape) – 16m/min – Max. Carton size: W500*H500mm – Min. Carton Size: W120*H120mm

RUBBER automatic carton sealer: folds the top flaps and tapes top and bottom

RUBBER is an automatic carton sealer that closes the top of the carton by itself: a sensor detects the carton, the flap folder turns in the front flap, the rear flap and the two side flaps, and the side belts carry the carton through the upper and lower tape heads, which tape the top and the bottom in one pass. The belts run at 16 m/min, and nobody has to hold the flaps down.

It takes cartons from W120 × H120 mm up to W500 × H500 mm and uses Kraft or BOPP tape 48–60 mm wide. Width and height are set with hand wheels, so the machine is made for runs of cartons of the same size.

The machine works on single-phase 220–240 V, 50–60 Hz and draws 240 W; the flap folder is pneumatic, so it also needs compressed air. A transparent safety guard with doors covers the folding and taping area, and an emergency stop is on the frame.

Use it on its own at the end of a packing table, or put it in a line after a case erector and a conveyor: the carton enters, is closed and taped, and leaves at the other end.

Technical specifications

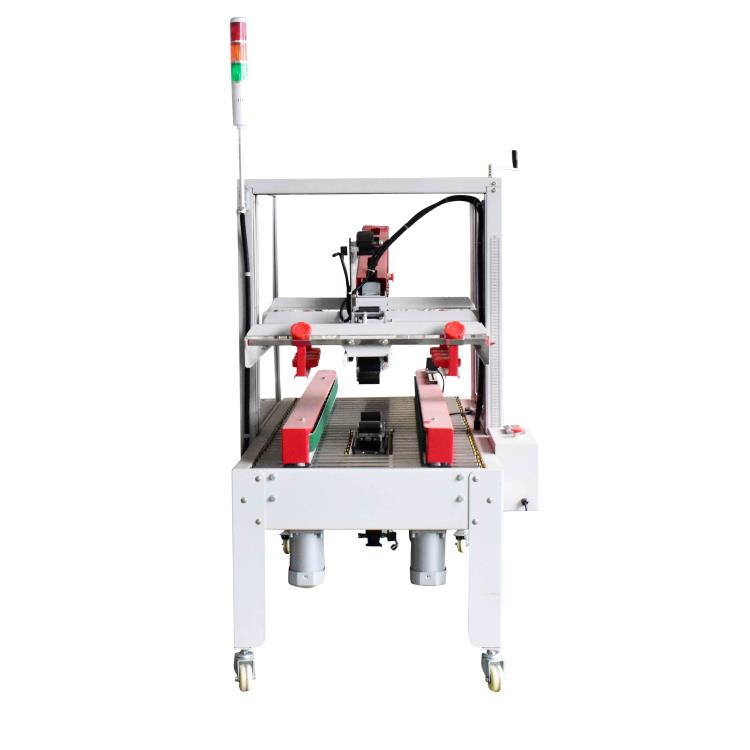

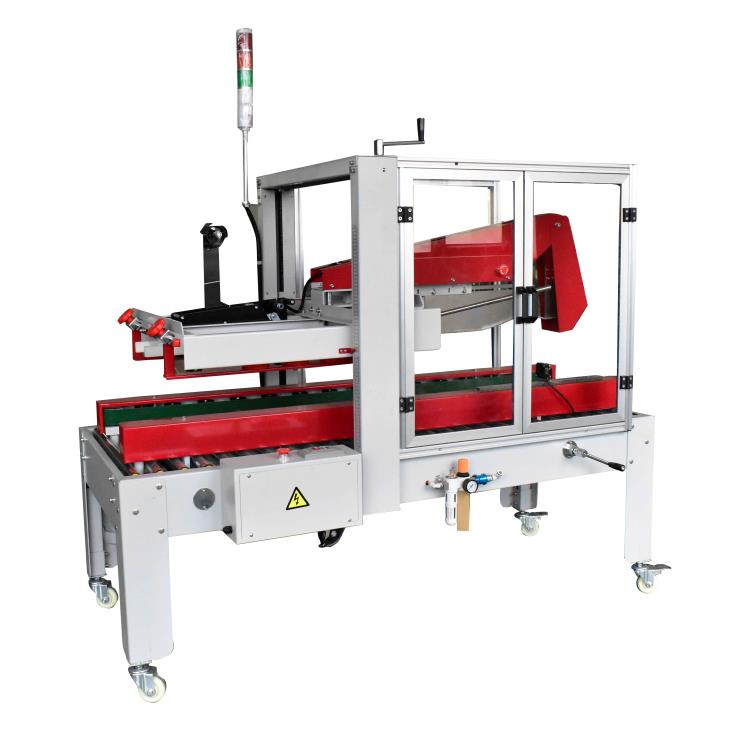

RUBBER carton sealer at work

▶

What the automatic flap folder changes on your packing line

• Flaps closed without hands. The folder turns in the front, rear and side flaps, so nobody holds the carton shut while it is taped.
• Top and bottom in one pass. Two tape heads seal both sides of the carton at the same time.
• Steady speed. The side belts carry every carton at 16 m/min, and the tape leg is the same length on every carton.
• A wide range of cartons. From W120 × H120 mm to W500 × H500 mm, set once with the hand wheels.
• Ready for a line. The carton feeds itself in, so the machine can run behind a case erector or a conveyor without an operator.
• Ordinary power. Single-phase 220–240 V and 240 W – no three-phase connection is needed.

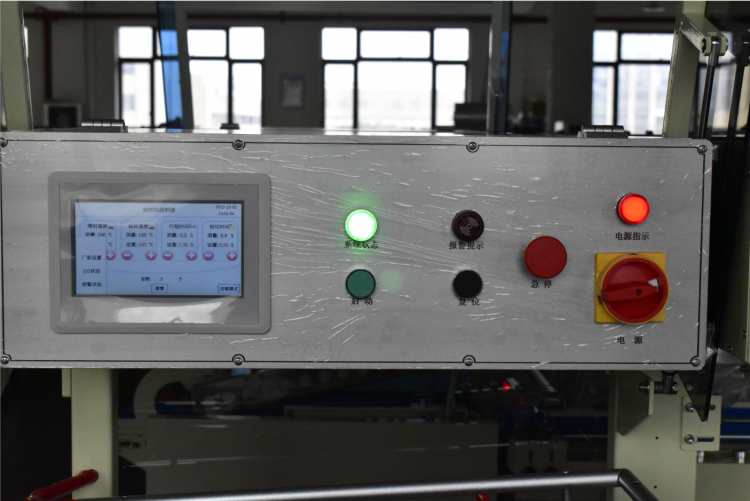

Controls, drive and safety

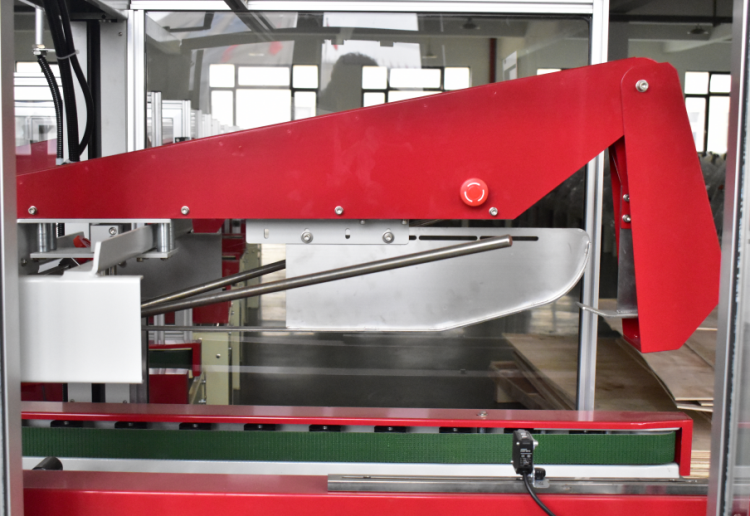

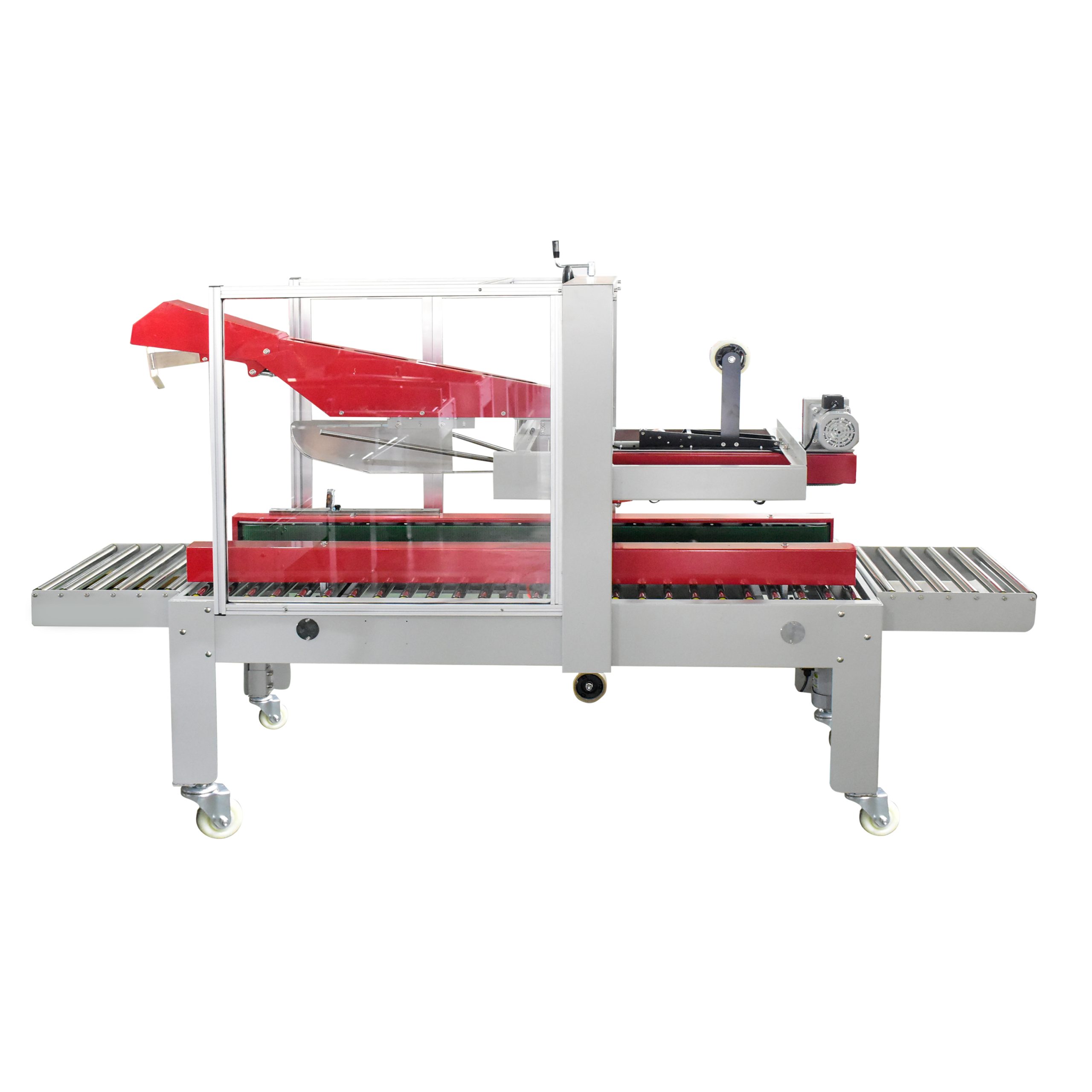

• Automatic top flap folder: front flap, rear flap, then the side flaps

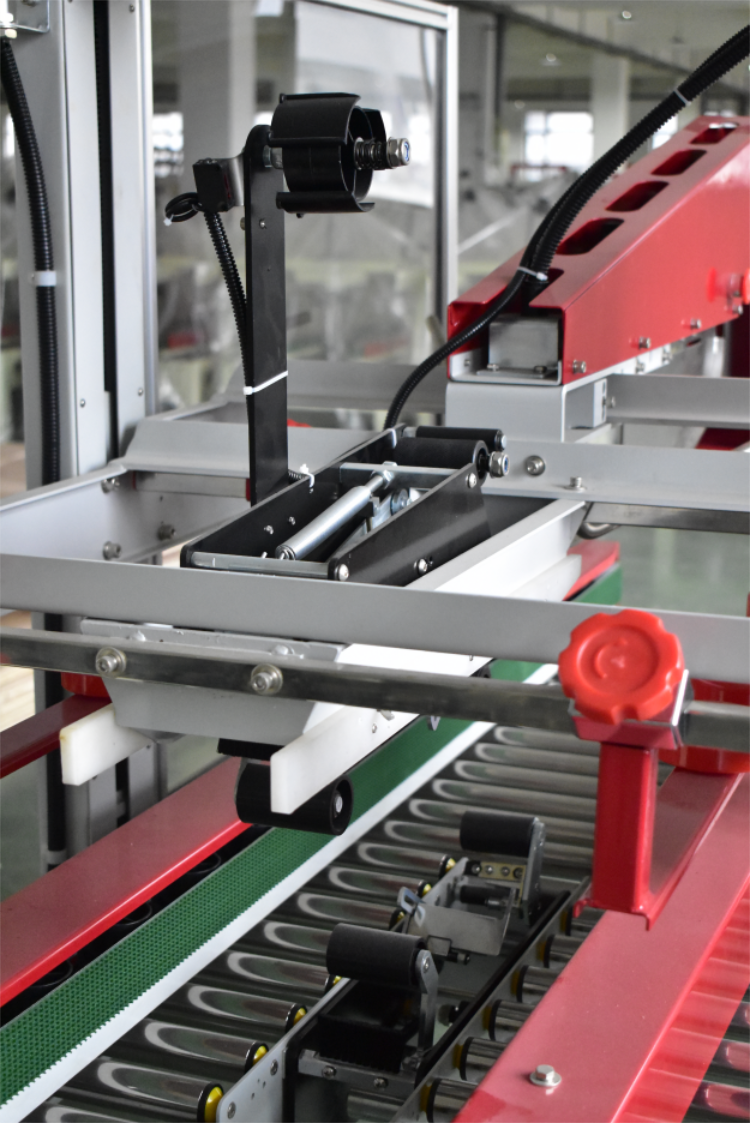

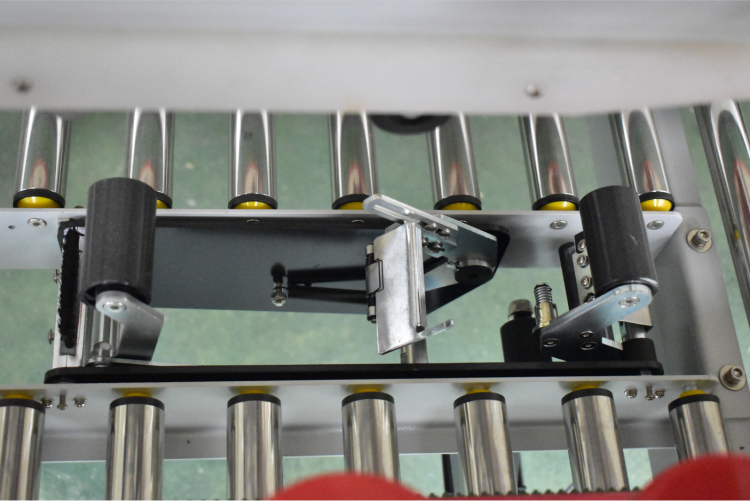

• Upper and lower tape heads in interchangeable cartridges

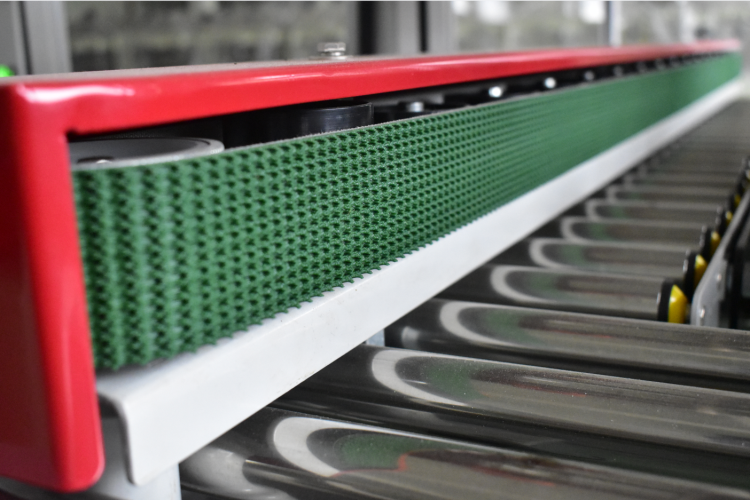

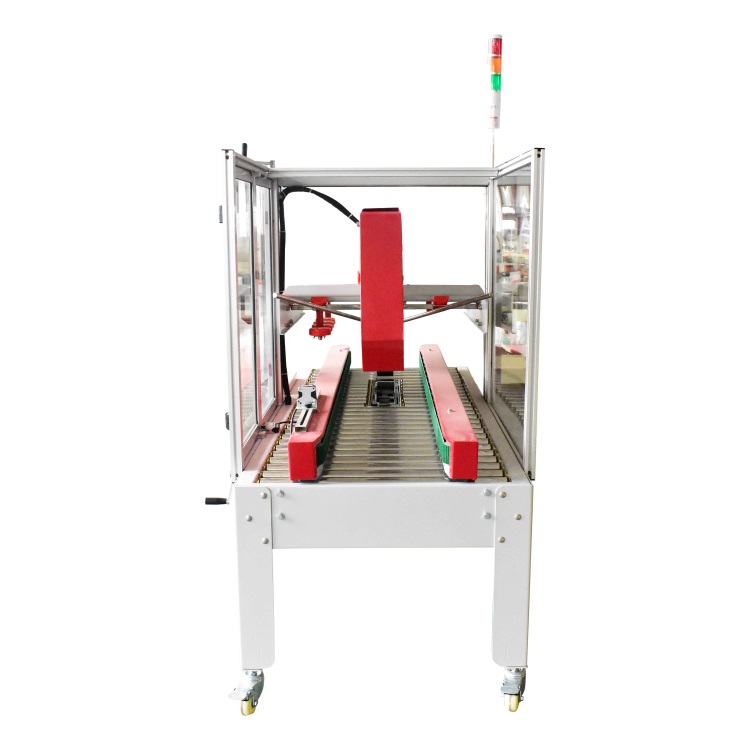

• Side drive belts, 16 m/min
• Width and height set with hand wheels
• Photo sensor that detects the carton and starts the folder
• Pneumatic cylinder for the flap folder, with an air filter and regulator

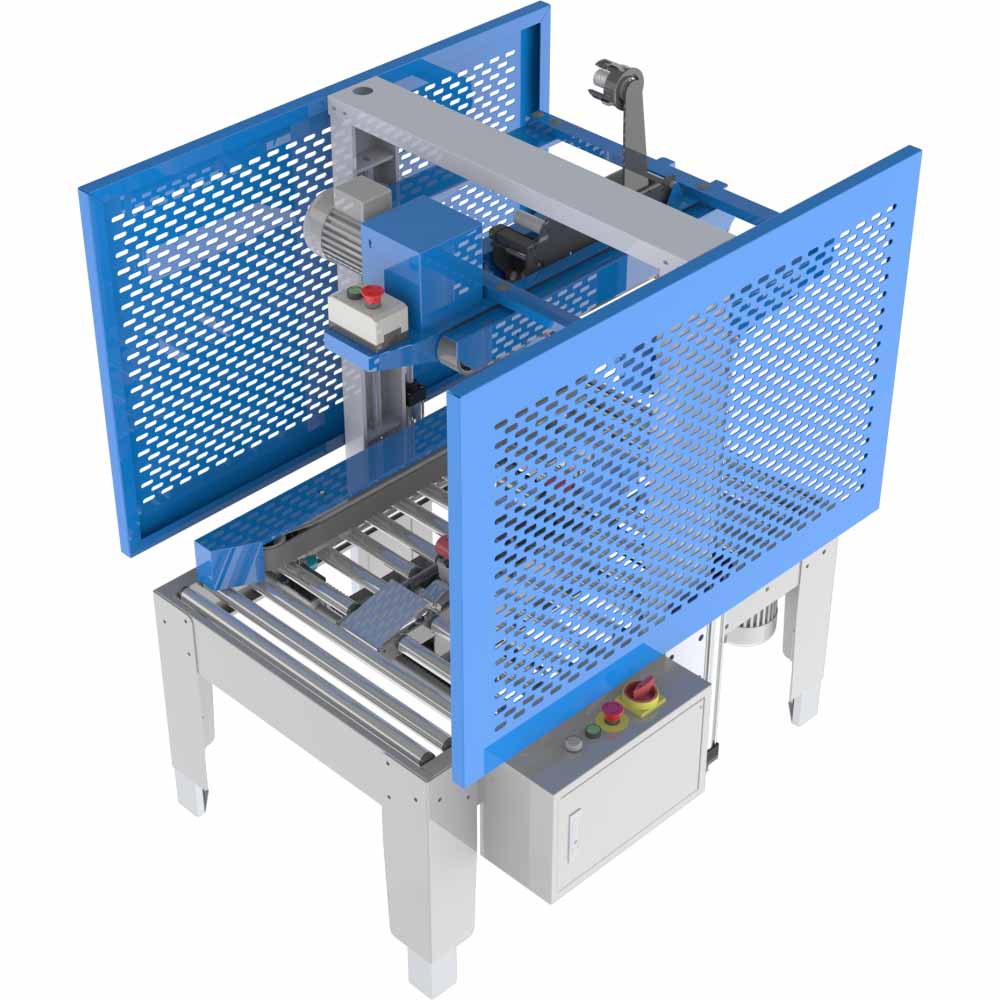

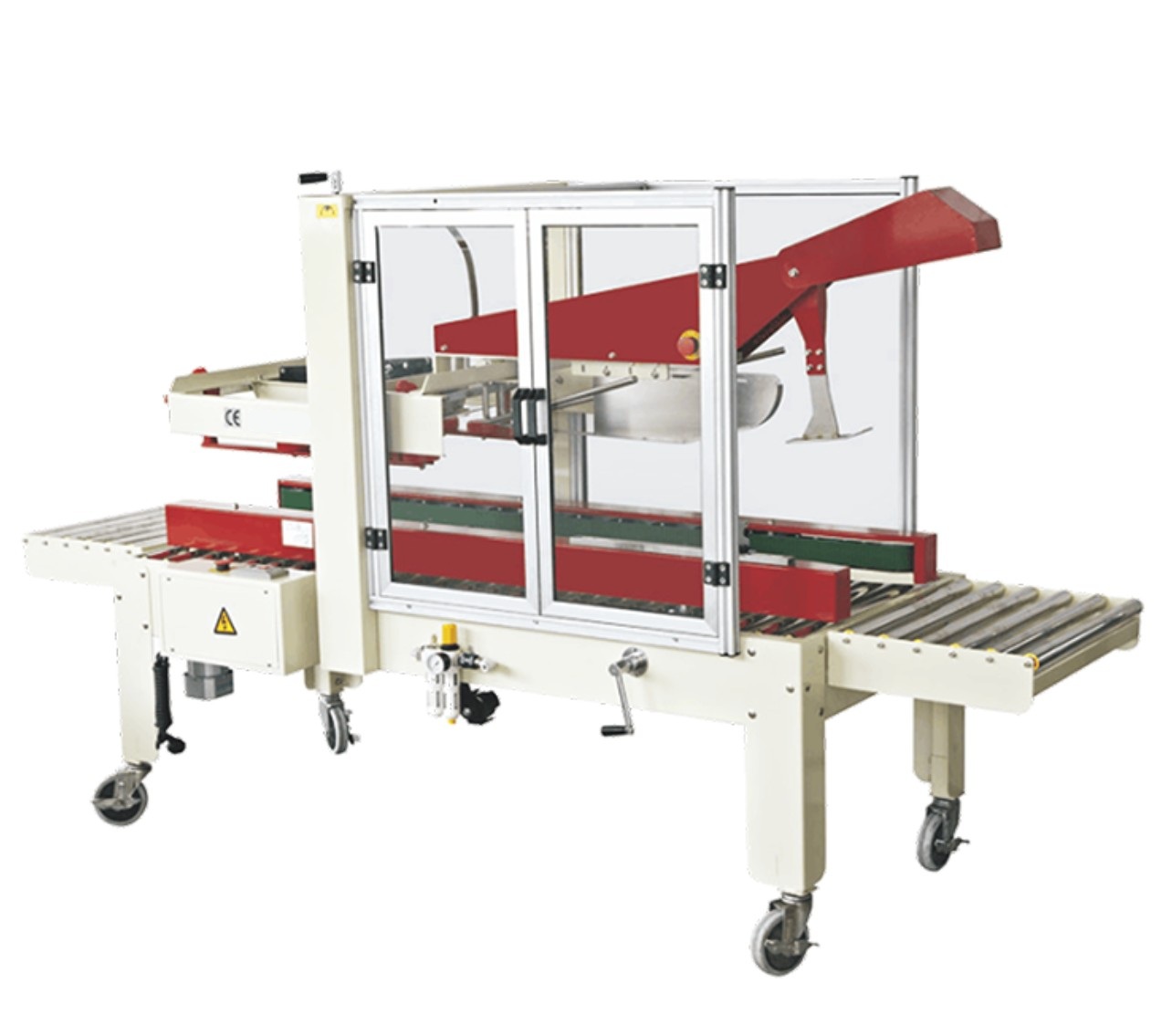

• Transparent safety guard with doors over the folding and taping area

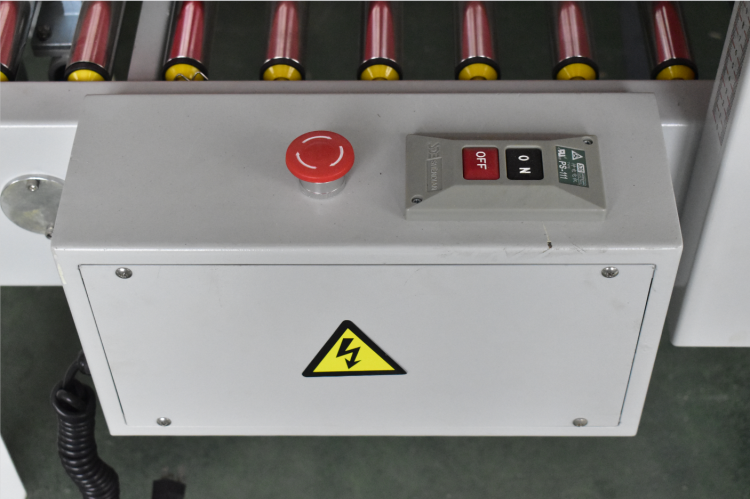

• Emergency stop on the frame
• Legs adjust the working height over a range of 350 mm; castors for moving the machine
• Tape leg (overlap on the carton ends) adjustable from 5 to 50 mm

How to use the RUBBER box taping machine

1. Connect the machine to single-phase 220–240 V and to compressed air; drain any water from the air filter.
2. Set the width of the side belts and the height of the upper tape head to your carton with the hand wheels.
3. Put a roll of Kraft or BOPP tape, 48–60 mm wide, into the upper and the lower cartridge and centre it.
4. Press the ON button; the side belts start.
5. Feed the carton in with the top flaps open and pointing up. The sensor starts the folder, the flaps are closed in order and the carton runs through the tape heads.
6. Take the sealed carton off at the outfeed. When the carton size changes, set the width and height again.

Tape heads, maintenance and common faults

• Tape too tight or too loose. Adjust the tension of the pull spring on the tape head; thick tape such as Kraft needs more tension.
• Ragged cut. The blade is dull or mounted the wrong way round: turn it or replace it.
• Tape leg too long or too short. Move the blade support for the front leg and the limit block for the rear leg.
• Tape wrinkles or runs off to one side. Clean the rubber roller, tighten the tape holder or its spring and check that the tape lies close to the carton.
• Air unit. Drain the water from the air filter regularly and keep the lubricator filled with pneumatic oil; wipe dust off the cylinder rod.
• Maintenance. Switch off the power and the air before any work. Oil the adjusting screws every three months, keep the blade clean and lubricated, and keep the machine dry. The side belts tighten a little over time – that is normal.

Before you order an automatic carton sealer

The price is shown on this page. A few details decide whether the machine suits your cartons: check them before you ask for a quote, or send them to us and we will go through them with you.

• Carton size. From W120 × H120 mm to W500 × H500 mm. Send us the length, width and height of your cartons and we confirm that they run.
• One size or many. RUBBER is set by hand for each carton size. If the size changes from carton to carton, AUTO&FOLD-5050 sets the width and height automatically.
• Cartons. Dry, clean corrugated cartons that are not deformed; plastic-coated cartons cannot be taped.
• Tape. Kraft or BOPP tape 48–60 mm wide, one width and thickness at a time.
• Power and air. A single-phase 220–240 V, 50–60 Hz socket and compressed air for the flap folder.
• Space. The machine measures about 1780 × 950 × 1400 mm and weighs about 240 kg; it ships in one crate of 1920 × 1000 × 1640 mm, about 330 kg.
