FLEX BOX Semi automatic Case Erector
FLEX BOX case erector will fold your box or case and speed up the process of creating the box and speed up the packing line.
- Fold bottom covers of carton and can be used as the platform for packing products
- Capacity: 6-7 cartons/min
- Height of work table: 700-800mm
- Box length: 200 – 600 mm
- Box width: 180 – 480 mm
- Box height: 120 – 500 mm
FLEX BOX Semi-automatic Case Erector

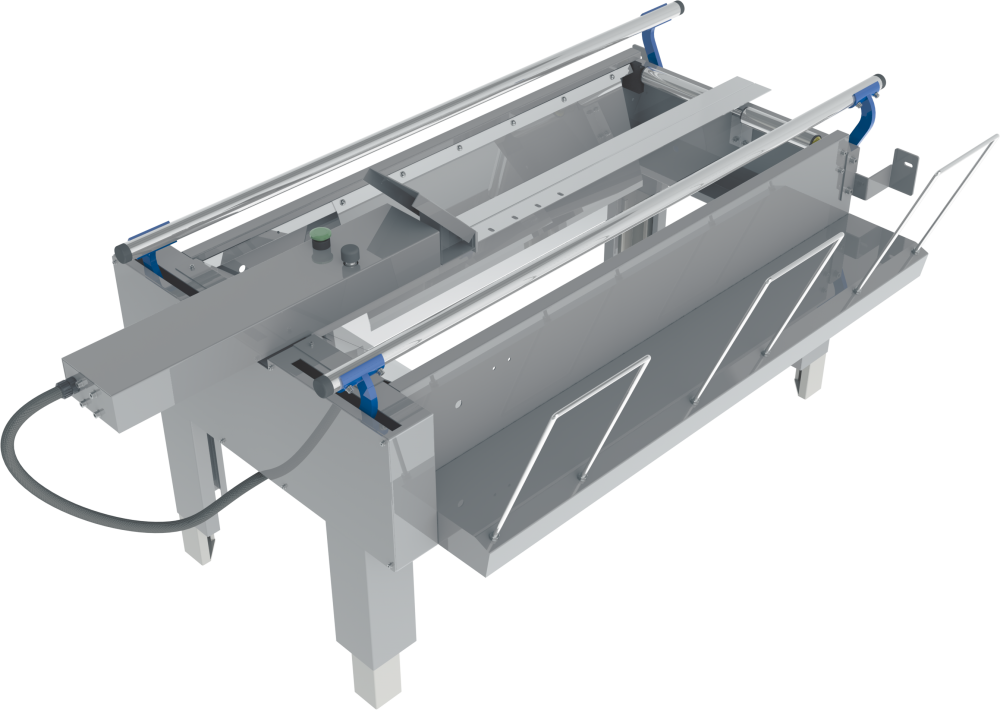

FLEX BOX case erector will fold your box or case and speed up the process of creating the box and speed up the packing line. It has the capacity to create up to 7 boxes per minute. FLEX BOX case erector is adjustable and can be used for different case sizes L(200-600)×W(150-480)mm×H(120-500)mm. FLEX BOX case erector folds the bottom cover of the case. The operator put the box on the machine and with that automatically folds the back and front covers of the case and sends it to the machine, then the machine guides case and folds the right and left covers. The operator puts in goods and folds the top covers of the case. Then pushing device sends the case to a carton sealing machine to seal the top and bottom of the case. This machine can work together with the FLEX-TAPE carton sealing machine. The height of the worktable is adjustable from 700mm to 800mm. Dimensions of FLEX BOX case erector are
L1500× W950× H (working table height +170)mm and it weighs 90kg. It uses air pressure to push the box down the packing line.
FLEX BOX Semi automatic Case Erector specifications:
|Height of work table||700-800mm|
|Air Pressure||0.4 MPa -0.6 MPa|
L1500× W950× H(working table height +170)mm
FLEX Box Case Erector is a semi-automatic case erection machine where you remove the blank box from the built-in magazine and place it in the machine manually. After installation, it is folded and held on the underside by means of two pneumatic valve folders. After this, you can easily fill the box without it falling over. By operating a push button or a foot pedal, the box is pushed pneumatically out of the machine into a Carton sealing machine connected thereto which will immediately tape the box. The machine has wide applications in the industry of chemical fiber, tobacco redrying, pharmacy, publish, air conditioning, household appliance, ceramics, hot work, and so on.
FLEX BOX Semi-automatic Case Erector video:
How does FLEX BOX Semi-automatic Case Erector work?
The operator opens an empty case and folds the front cover. The back cover is folded from a 45° bevel angle by pushing the board.
The operator put the case bottom on the center guide rail of the case erector.
The operator moves the case according to the arrow direction to the bottom right and left covers to touch the switch board at the bottom.

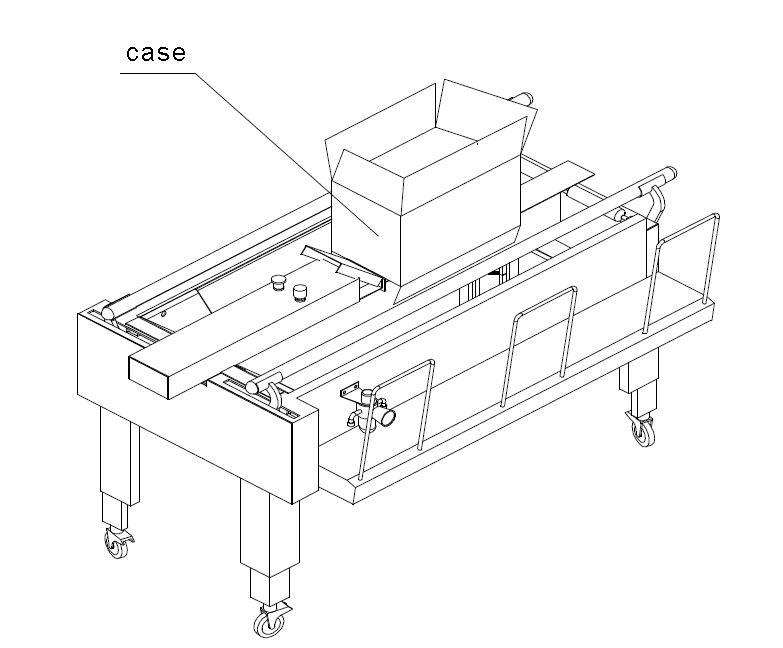

The bottom cylinder pushes the case guide rod moves forward to the center guide rail to the clamp case. At the same time, two cylinders rotate the right and left cover-folding board from the vertical direction to level, which to fold bottom right and left covers. Put goods into the case after finishing fold (see chart 3-8).
As the chart shows, the operator folds the top covers of the case and presses, then presses the pushing device switch (or footswitch). The cylinder drive pushing device to push the case full of goods into the carton sealing machine to seal the case (see chart 3-9).
